Yamaha YHT-4970U 5.1-Channel Home Theater System

Yamaha YHT-4970U 5.1-Channel Dolby Atmos Home Theater System

The Yamaha YHT-4970U delivers immersive surround sound, advanced video performance, and simple setup in one complete home theater package. Built around the powerful Yamaha RX300A AV receiver, this 5.1-channel system supports Dolby Atmos and DTS Virtual:X for expansive three-dimensional sound that transforms movies, TV shows, gaming, and music into a cinematic experience. Featuring HDMI 2.1 connectivity with support for 4K/120 and 8K/60 video, HDR10+, Dolby Vision™, VRR, ALLM, and HDMI eARC, the YHT-4970U is ready for today’s latest entertainment systems and next-generation gaming consoles.

With included front, center, and surround speakers plus a powered subwoofer, the system delivers balanced, room-filling audio with deep bass and crystal-clear dialogue. Yamaha Room Correction automatically optimizes sound performance for your room acoustics, while Bluetooth® Multipoint streaming makes it easy to switch wirelessly between devices. Designed for effortless setup and everyday convenience, the Yamaha YHT-4970U offers a true plug-and-play home theater solution with premium Yamaha sound quality.

Specifications

• Model: Yamaha YHT-4970U
• System Type: 5.1-channel home theater system

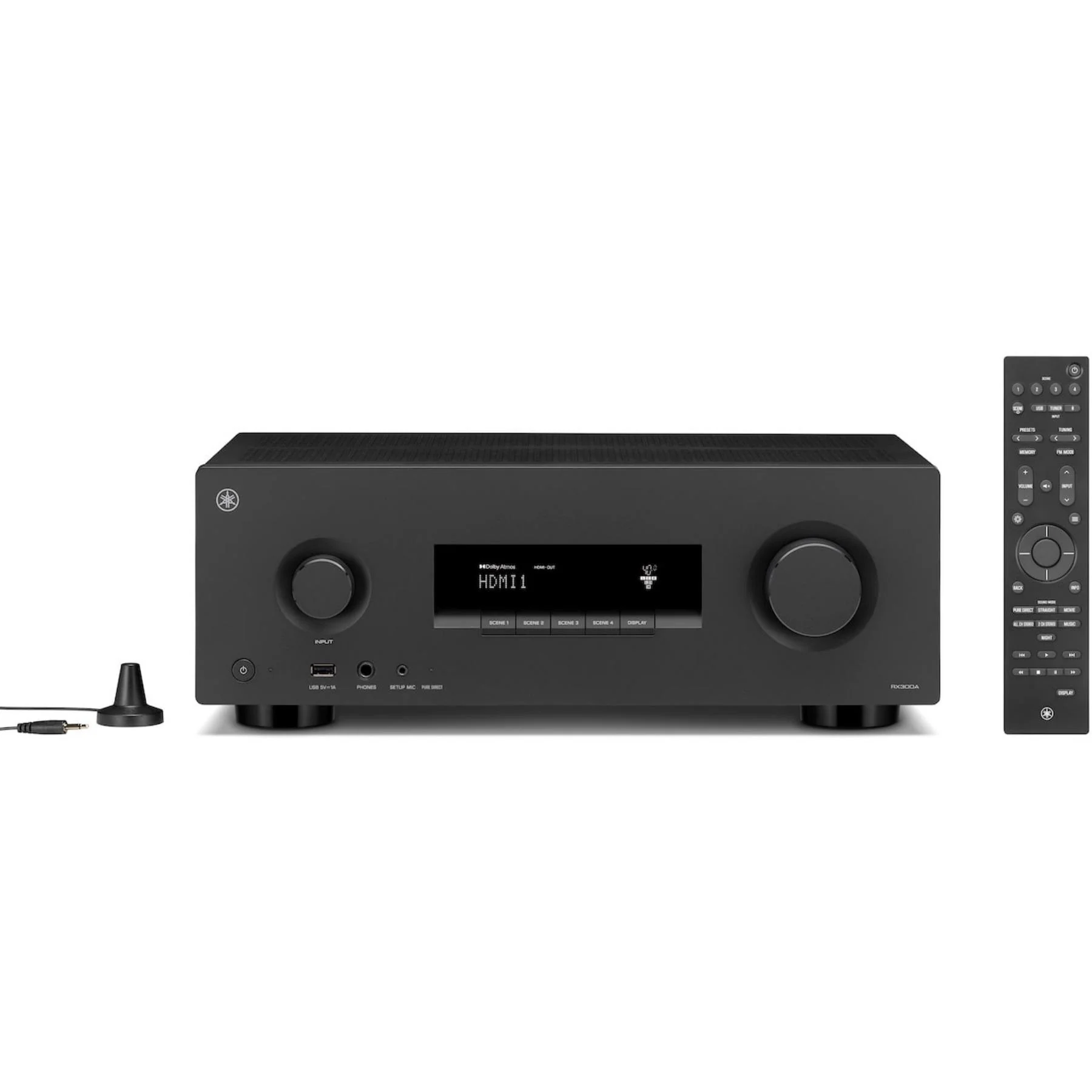

• AV Receiver: Yamaha RX300A
• Amplification Channels: 5.2
• Decodable Channels: 5.1
• Output Power: 70W (8 ohms, 20Hz–20kHz, 0.09% THD, 2-ch driven)
• Dynamic Power: 145W (6 ohms, 1kHz, 10% THD, 1-ch driven)
• Bi-Amp Capable: Yes
• Surround Formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS
• Post Processing: Dolby Surround
• USB Audio Formats: MP3, MPEG-4 AAC, WMA, WAV
• HDMI Audio Formats: PCM (8-channel max)
• Sound Modes: Pure Direct, Straight, Movie, All Channel Stereo, 2 Channel Stereo, Music, Night
• Room Calibration: Yamaha Room Correction
• Audio Features: Dialogue Level, Subwoofer Trim, Extra Bass, Lip Sync

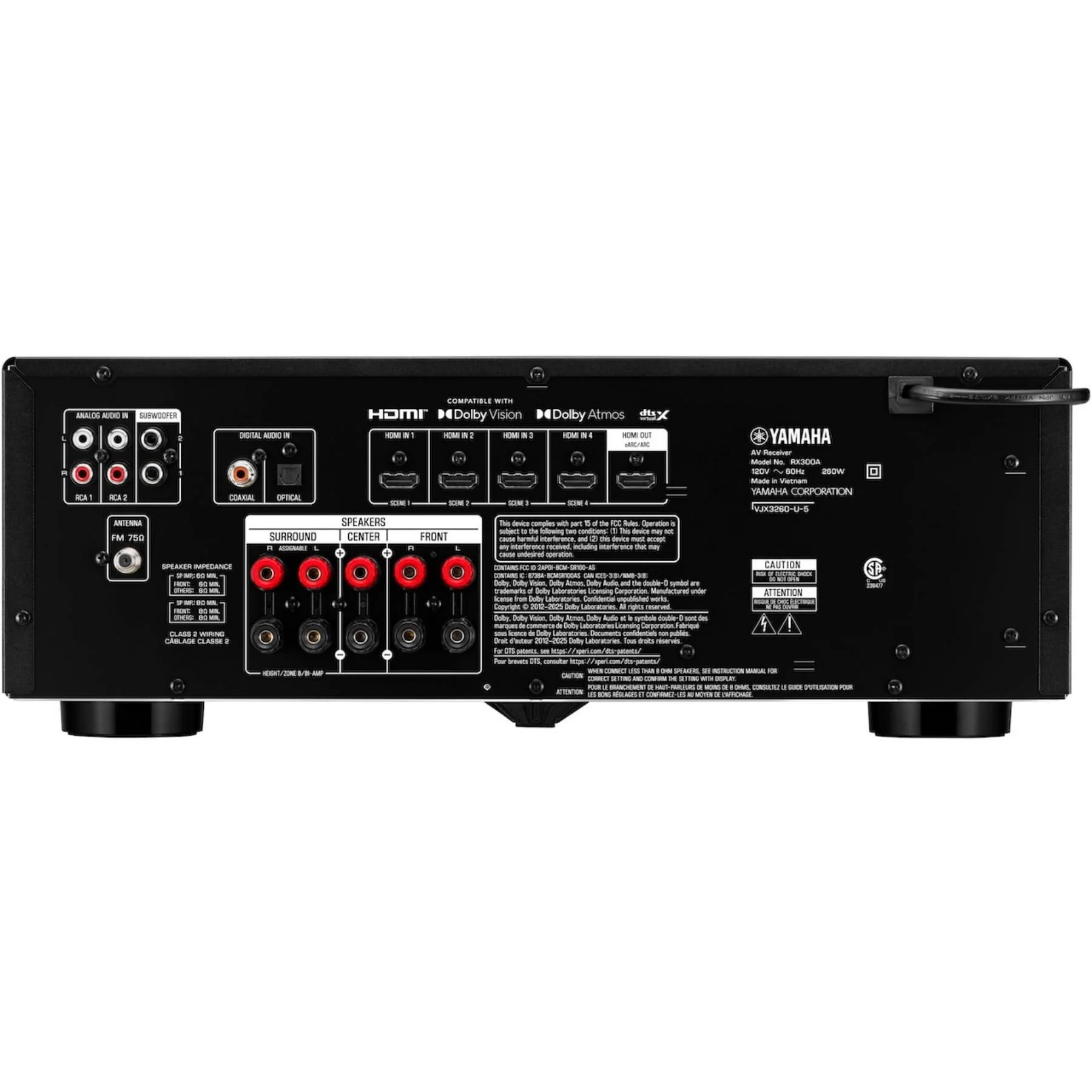

• HDMI Inputs: 4
• HDMI Outputs: 1
• HDMI Features: HDMI 2.1, 8K/60Hz, 4K/120Hz, eARC, ARC, VRR, ALLM, QMS, HDCP 2.3, CEC, Auto Lip Sync
• HDR Support: HDR10+, Dolby Vision™, Hybrid Log-Gamma (HLG)
• Bluetooth: Bluetooth 5.3 with Multipoint
• Speaker Outputs: 5 binding post terminals
• Subwoofer Outputs: 2 pre-outs
• Analog Inputs: 2 RCA
• Optical Input: 1
• Coaxial Input: 1
• USB Port: Audio playback and firmware updates
• FM Tuner: Yes
• Power Consumption: 260W
• Receiver Dimensions: 17-1/8"W x 6-1/8"H x 12-1/2"D
• Receiver Weight: 16.8 lbs.
• Speaker System Frequency Response: 28Hz–25kHz
• Speaker Impedance: 6 ohms
• Front Speaker Driver: 2-3/4" full-range cone
• Center Speaker Driver: 2-3/4" full-range cone
• Surround Speaker Driver: 2-3/4" full-range cone
• Subwoofer Driver: 8" cone
• Subwoofer Type: Advanced YST II
• Subwoofer Output Power: 50W
• Subwoofer Dynamic Power: 100W
• Included Accessories: Remote Control, Batteries, FM Antenna, Setup Microphone, Microphone Stand, Quick Guides, Speaker Wire, Subwoofer Cable

What It's Great At

• Delivering immersive Dolby Atmos surround sound for movies, TV, and gaming
• Supporting next-generation gaming with HDMI 2.1, VRR, ALLM, and 4K/120 playback
• Providing simple all-in-one home theater setup with included speakers and subwoofer
• Optimizing sound automatically for your room using Yamaha Room Correction
• Streaming music wirelessly with Bluetooth Multipoint connectivity
• Enhancing cinematic realism with HDR10+, Dolby Vision™, and 8K video support

Expanded Key Features List

• Complete 5.1-Channel Home Theater Package: Includes the RX300A AV receiver, five matched speakers, powered subwoofer, speaker wire, and subwoofer cable for a true out-of-the-box home theater experience.
• Dolby Atmos and DTS Virtual:X: Creates immersive three-dimensional surround sound with enhanced height and spatial audio effects.
• HDMI 2.1 Connectivity: Supports advanced 4K/120Hz and 8K/60Hz video playback for modern TVs and gaming consoles.
• Advanced HDR Support: Compatible with Dolby Vision™, HDR10+, and Hybrid Log-Gamma for vibrant colors and improved contrast.
• Bluetooth Multipoint Streaming: Pair and switch seamlessly between two Bluetooth devices for convenient wireless audio playback.
• Automatic Room Correction: Measures room acoustics and adjusts speaker settings automatically for optimized audio performance.
• Gaming-Ready Performance: Features ALLM, VRR, and QMS for smoother gameplay with reduced lag and enhanced responsiveness.
• Scene Preset Buttons: Save and instantly recall up to four customized listening modes and input settings.
• Cinema Sound Modes: Choose from Movie, Music, Stereo, Night, and Pure Direct modes to match your content and listening preferences.
• Powered 8-Inch Subwoofer: Delivers impactful bass performance with Yamaha Advanced YST II technology and Twisted Flare Port design.

FAQ Section

Q: Does the Yamaha YHT-4970U support Dolby Atmos?
A: Yes, the system supports Dolby Atmos and DTS Virtual:X for immersive surround sound with enhanced spatial audio effects.

Q: Is this system compatible with next-generation gaming consoles?
A: Absolutely. HDMI 2.1 support includes 4K/120Hz, VRR, ALLM, and QMS for smooth and responsive gaming performance.

Q: Does the package include speakers and a subwoofer?
A: Yes, the YHT-4970U includes five speakers, a powered subwoofer, speaker wire, and a subwoofer cable.

Q: Can I stream music wirelessly?
A: Yes, Bluetooth® Multipoint allows wireless streaming from compatible smartphones, tablets, and laptops with seamless switching between two devices.

Q: What video formats are supported?
A: The system supports 4K/120, 8K/60, Dolby Vision™, HDR10+, and Hybrid Log-Gamma video formats.

Q: How does Yamaha Room Correction work?
A: The included setup microphone measures room acoustics and automatically optimizes speaker settings for the best possible sound performance.

Q: Does the receiver support HDMI eARC?
A: Yes, HDMI eARC allows high-quality audio transmission from your TV to the receiver using a single HDMI cable.

Q: Are different sound modes available?
A: Yes, the receiver includes Movie, Music, Stereo, Night, Pure Direct, and additional listening modes for customized audio performance.
