SVS Prime Elevation Speaker

The SVS Prime Elevation Speaker is a high-performance, ultra-flexible home theater loudspeaker built to solve real-world placement challenges while delivering true immersive audio. Acclaimed as one of the best Dolby Atmos speakers, it’s designed as a direct-radiating height effects speaker for Dolby Atmos®, DTS:X®, and Auro-3D®—so you get overhead effects without relying on “ceiling bounce” compromises or perfect room conditions. Thanks to its angled front baffle and included SVS Multi-Angle Wall Bracket (patent pending), Prime Elevation can mount to a wall or ceiling in multiple orientations and confidently pull duty as a height, surround, LCR, or even a creative specialty channel in rooms where traditional speaker placement isn’t possible. Premium driver engineering, a refined 2-way crossover, and a rigid, resonance-resistant cabinet combine for crisp dialog, precise imaging, and dynamically charged detail that makes movies, music, and gaming more convincing.

What It's Good At:

• Creating true, direct-radiating Dolby Atmos/DTS:X/Auro-3D height effects without “ceiling bounce” limitations
• Solving tough placement scenarios with a multi-position wall/ceiling mounting system and angled baffle
• Serving multiple roles (height, L/R, center, side/rear surround, LCR) in one speaker design
• Delivering clear, airy highs and articulate detail with an aluminum dome tweeter and optimized diffuser
• Producing clean, controlled midrange clarity and strong dynamics for dialog, effects, and music
• Blending seamlessly into premium rooms with multiple finish options and an adjustable/removable magnetic logo

SVS Prime Elevation Speaker Full Specifications:

• Type: Multi-purpose home theater speaker / height effects speaker
• Immersive audio compatibility (use case): Dolby Atmos®, DTS:X®, Auro-3D® (direct-radiating height effects)
• Tweeter: 1" aluminum dome tweeter
• Midrange driver: 4.5" midrange driver
• Woofer: N/A
• Frequency response / acoustic data (rated bandwidth): 55 Hz – 25 kHz (±3 dB)
• Nominal impedance: 8 ohms
• Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300–3kHz)
• Recommended amplifier power: 20–150 watts

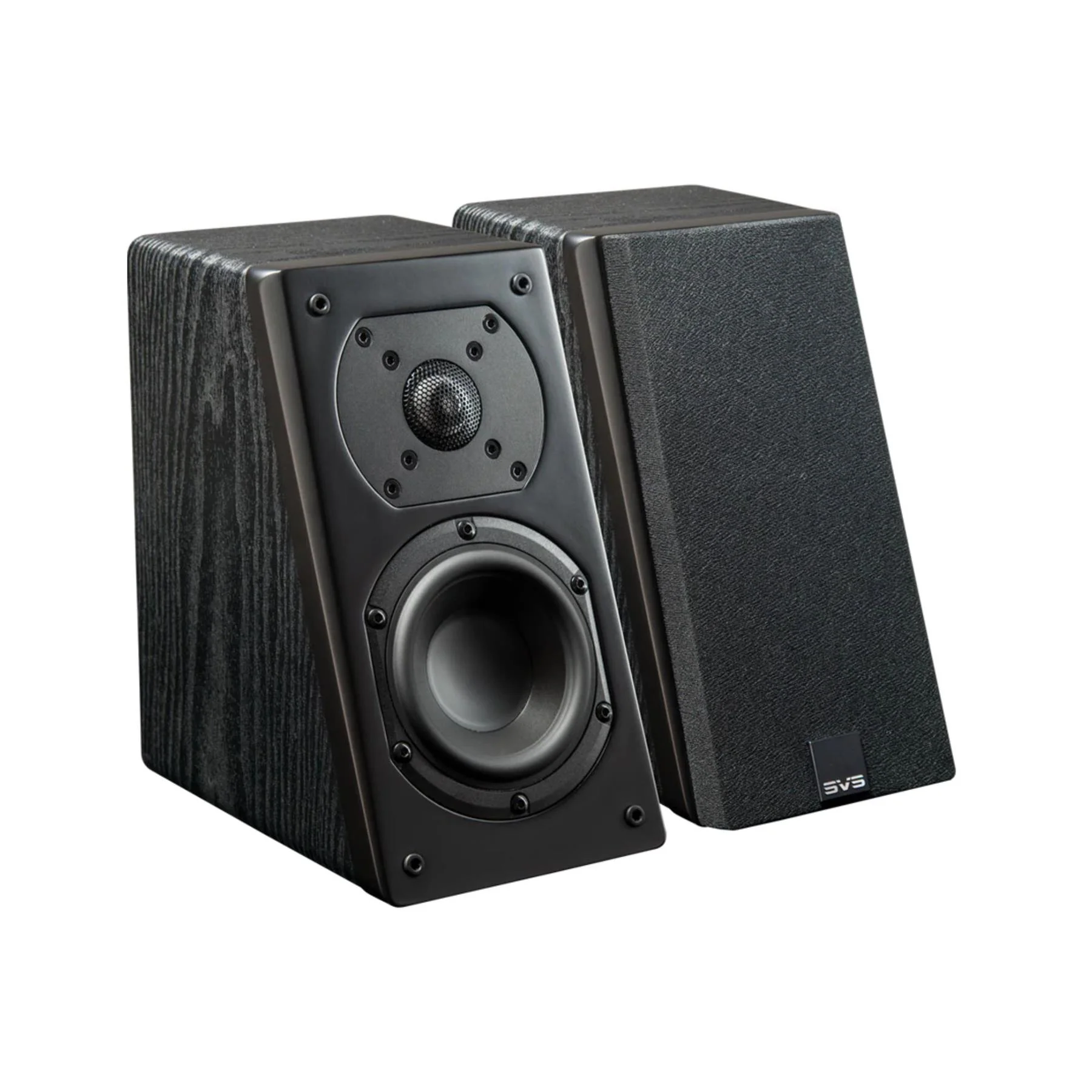

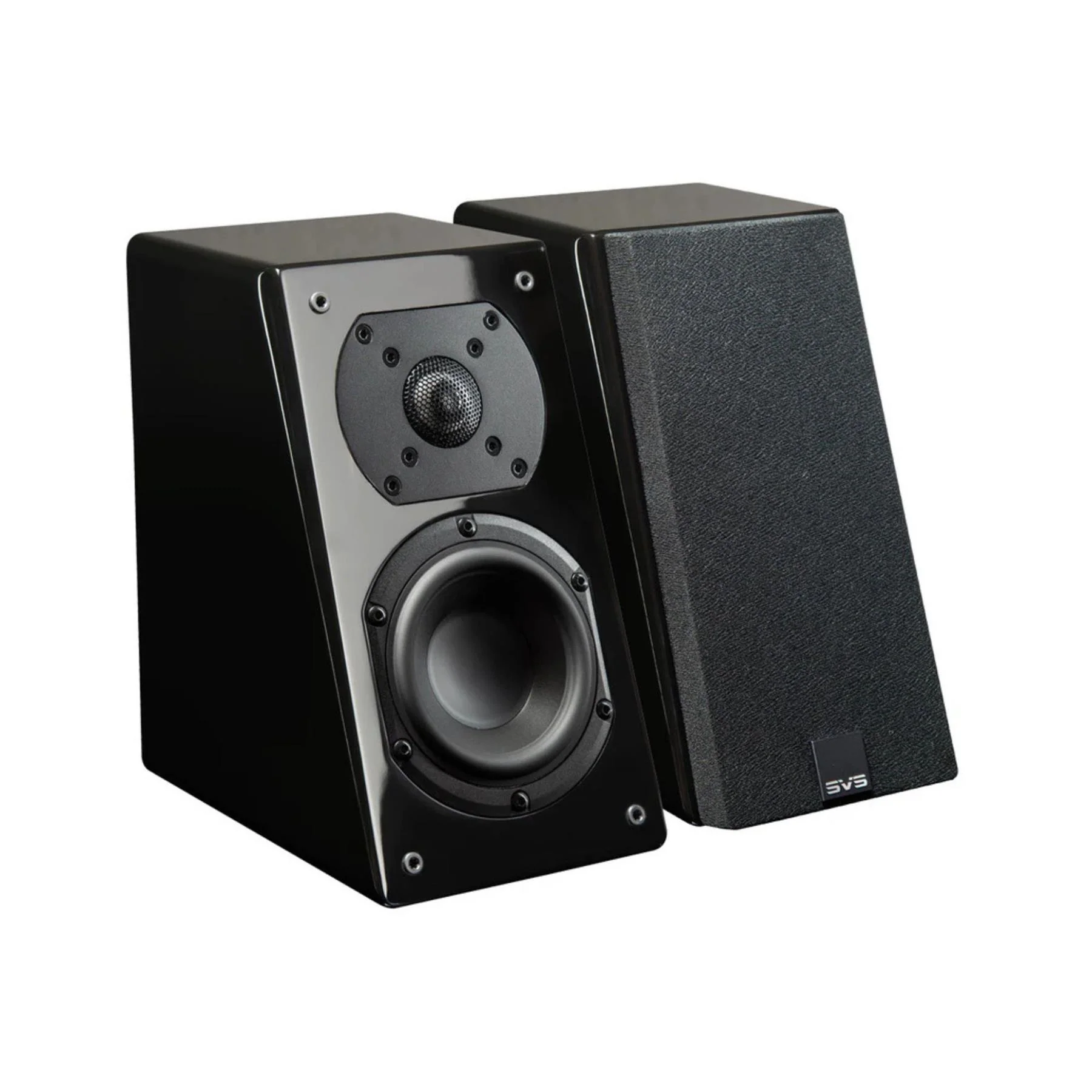

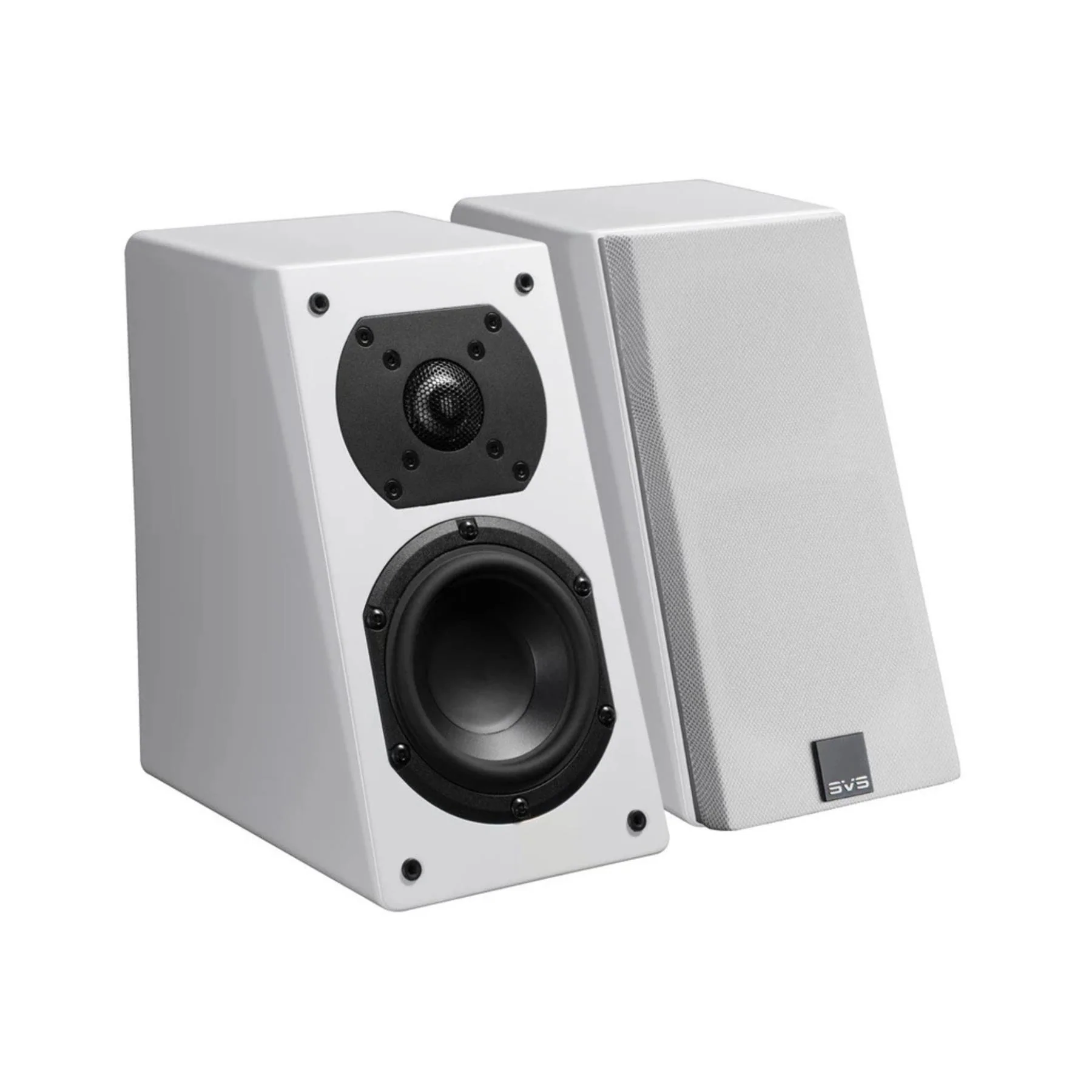

• Finish options: Black Ash, Piano Gloss Black, Piano Gloss White

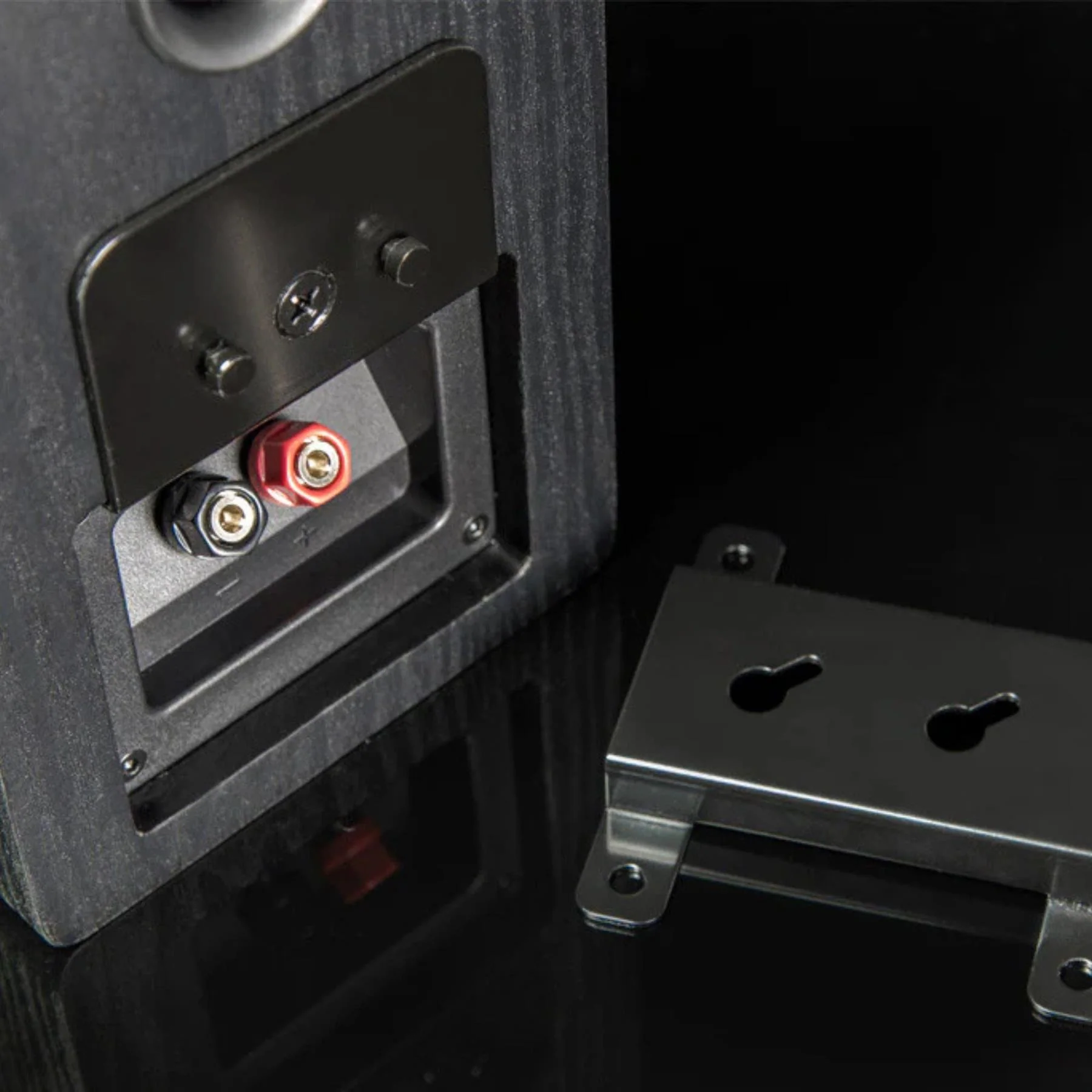

• Binding posts: Single set of 5-way binding posts
• Port: 1" wide-flared rear-firing port
• Grille: Cloth grille with pin/cup retention system
• Logo: Magnetic SVS logo (removable and rotatable/orientable based on application)
• Feet: Elastomer stick-on bumper feet (adds 3mm to height)

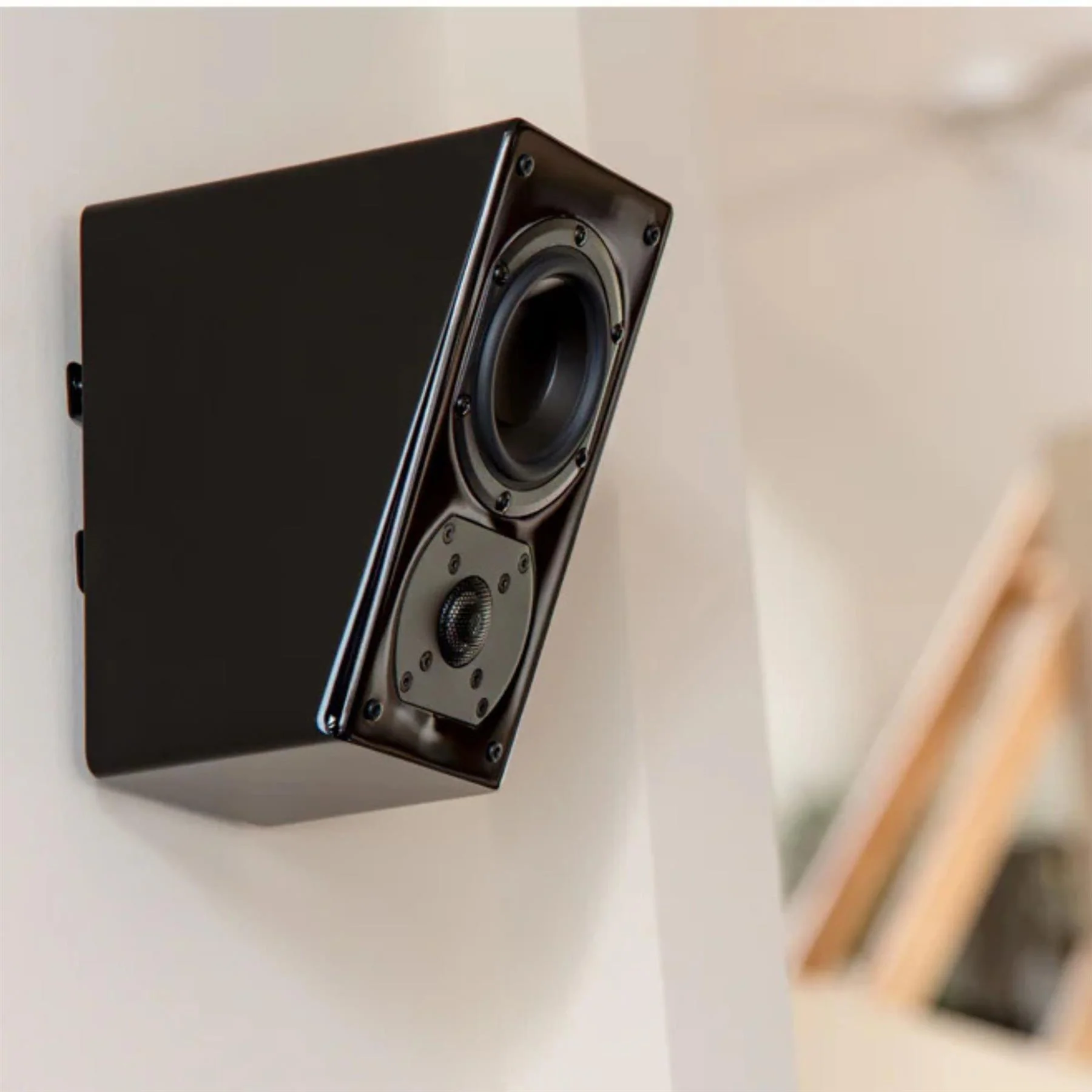

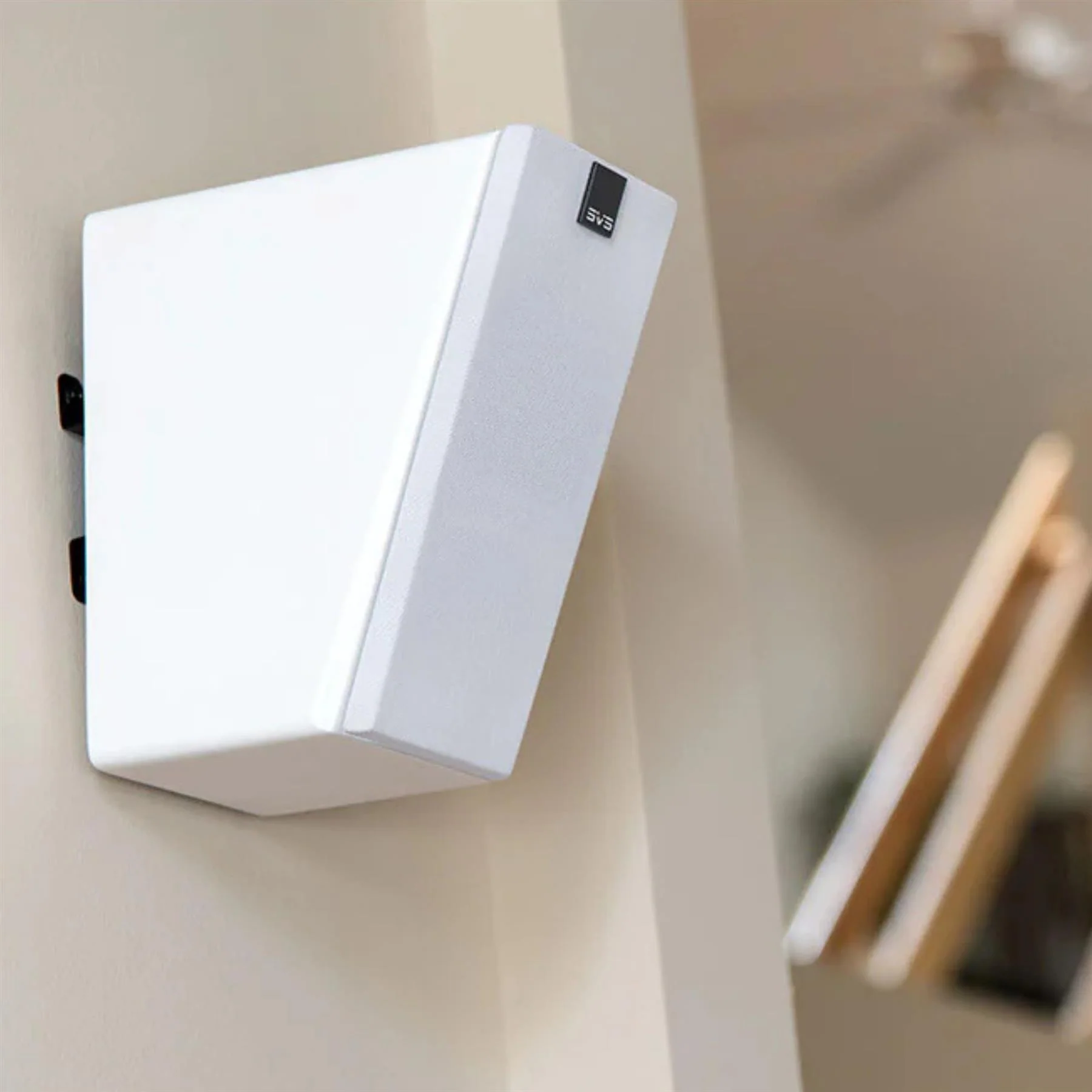

• Mounting system: Unique SVS Multi-Angle Wall Bracket (patent pending) system allowing wall mounting in any of four positions
• Mount insert: Brass insert for mounting compatibility
• Universal mount thread: 1/4" brass insert for use with included SVS Multi-Angle Wall Bracket and other bracket mounting systems
• Cabinet dimensions: 9.25" (H) x 5.44" (W) x 7.88" (D)
• Overall dimensions (includes grille, binding posts, and bumper feet): 9.4" (H) x 5.44" (W) x 8.33" (D)
• Overall dimensions (includes grille and SVS Multi-Angle Wall Bracket): 9.25" (H) x 5.44" (W) x 8.98" (D)
• Shipped dimensions: 9.30" (H) x 12" (W) x 18" (D)
• Weight (unboxed): 7.8 lb
• Shipped weight: 20 lb
• 1" Aluminum Dome Tweeter details:
  • FEA-optimized diffuser for airy, unveiled presentation
  • Aluminum dome for exceptional transient response
• 4.5" Midrange Driver details:
  • Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
  • Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high-frequency response
  • Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
  • Vented voice coil former minimizes air compression artifacts
• Crossover design: 2-way crossover
• Crossover components: Premium-grade capacitors, air-core inductors, heavy-trace printed circuit boards
• Crossover performance notes: Crossover network delivers outstanding phase coherency and time domain behavior
• Crossover point: Tweeter-to-woofer crossover at 2.5 kHz (12 dB/octave slopes)
• Cabinet / acoustic construction:
  • Acoustically transparent and FEA optimized grilles minimize diffraction
  • Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve off-axis high-frequency response
  • FEA-optimized cabinet and extra thick MDF bracing eliminate resonances
  • Angled baffle and optimized crossover combine for perfect acoustic performance at any position

SVS Prime Elevation Speaker Q&A:

What is the SVS Prime Elevation Speaker designed to do?

It’s designed as a direct-radiating height effects speaker for immersive surround formats (Dolby Atmos®, DTS:X®, Auro-3D®) and can also be used as an LCR or surround speaker when placement is challenging.

Can it be mounted on a wall or ceiling?

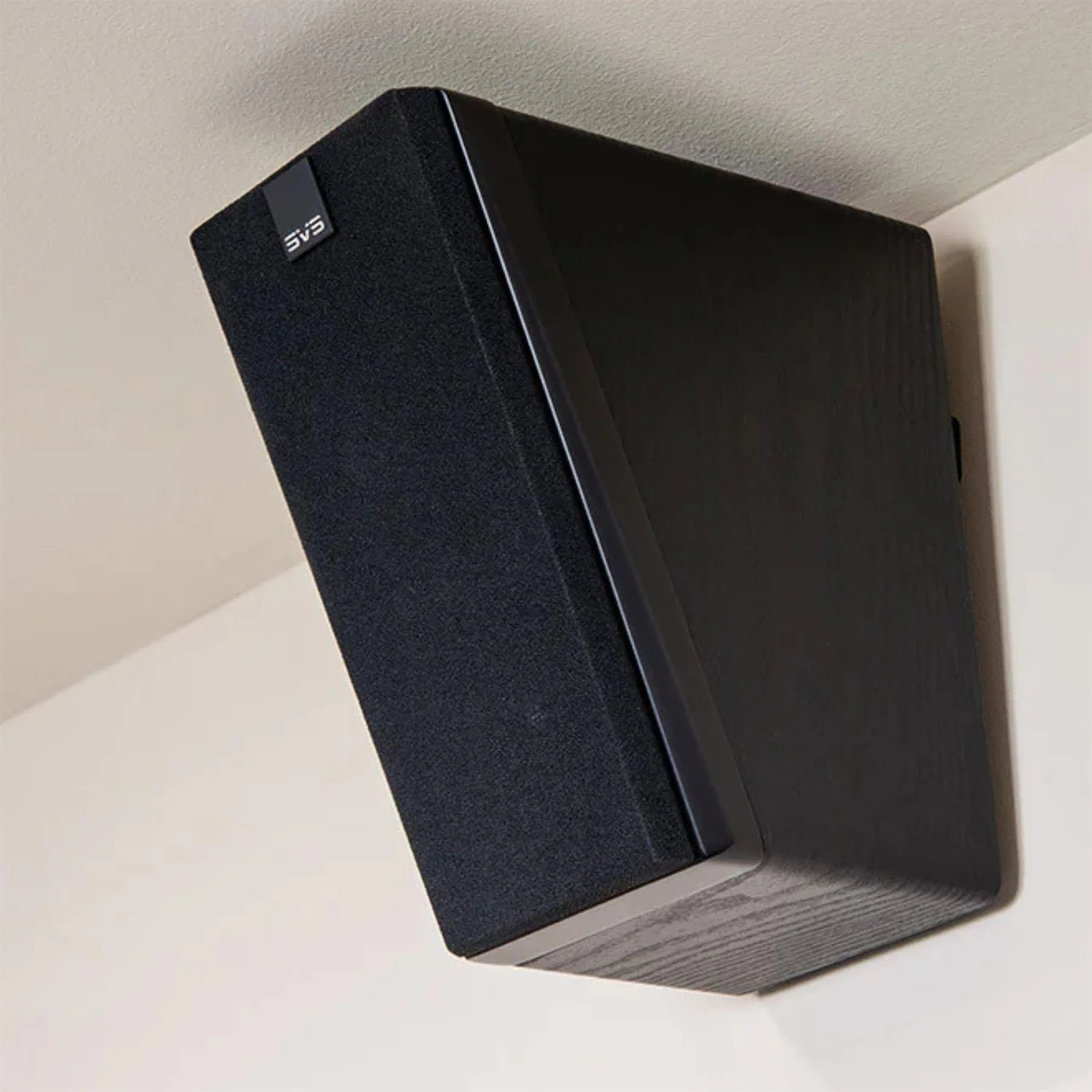

Yes. It includes an SVS Multi-Angle Wall Bracket (patent pending) that supports multiple mounting orientations, plus mounting insert options for broader bracket compatibility.

Is this a “ceiling bounce” Atmos speaker?

No. Prime Elevation is built to radiate sound directly toward the listening area for height effects, avoiding the limitations and room-dependency of ceiling-bounce approaches.

What amplifiers/AVRs pair well with it?

With an 8-ohm nominal impedance, 87 dB sensitivity, and a recommended 20–150 watts of amplifier power, it pairs well with most quality AV receivers and separate amplification.

What are the key audio specs (frequency response and sensitivity)?

It’s rated at 55 Hz–25 kHz (±3 dB) with 87 dB sensitivity (2.83V @ 1 meter, full-space, 300–3kHz).

What drivers does it use?

It features a 1" aluminum dome tweeter and a 4.5" midrange driver (no dedicated woofer listed), tuned through a 2-way crossover.

How big is it and how much does it weigh?

The cabinet is 9.25" (H) x 5.44" (W) x 7.88" (D), and it weighs 7.8 lb unboxed. Overall dimensions vary slightly depending on whether you include feet or the wall bracket.

What finishes are available?

It’s available in Black Ash, Piano Gloss Black, and Piano Gloss White to match different room aesthetics and theater builds.
