Rotel Michi Prestige X430 Integrated Amplifier

Rotel Michi Prestige X430 Integrated Amplifier

• 210 watts per channel (8 ohms) / 340 watts per channel (4 ohms) for powerful, high-current performance
• Class AB amplifier design with custom-tuned push-pull output transistors for dynamic, low-distortion sound
• Roon Tested certification for seamless integration with Roon music systems
• ESS SABRE ES9039Q2M 32-bit DAC for audiophile-grade digital-to-analog conversion and exceptional clarity
• Bluetooth with aptX HD and AAC for high-quality wireless music streaming
• HDMI ARC input for direct, high-performance connection to your TV audio system
• PC-USB input (32-bit/384kHz PCM, DSD 256/4X DoP) for high-resolution audio playback from computers
• Three coaxial and three optical (Toslink) digital inputs for versatile source connectivity
• Moving Magnet (MM) phono input for turntable and vinyl playback
• Dual subwoofer outputs for enhanced low-frequency performance and system expansion
• A/B speaker switching terminals for two-zone or multi-speaker configurations
• Three pairs of RCA analog inputs for flexible component connections

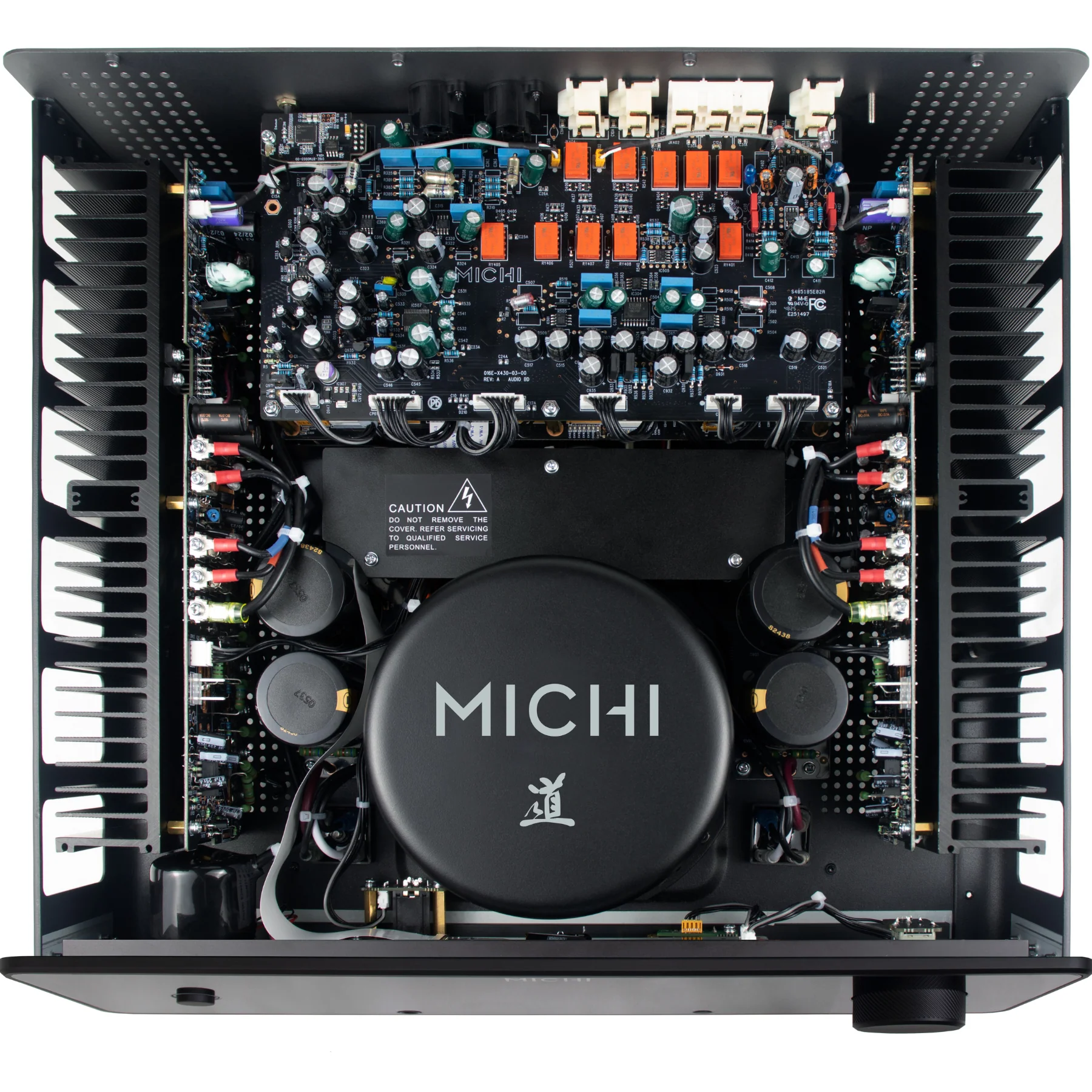

• Massive Rotel-engineered toroidal transformer with noise-rejecting enclosure for ultra-low noise and superior dynamics
• Isolated circuit design to minimize interference and preserve signal purity
• Premium anodized aluminum chassis with knurled volume control for durability and refined aesthetics

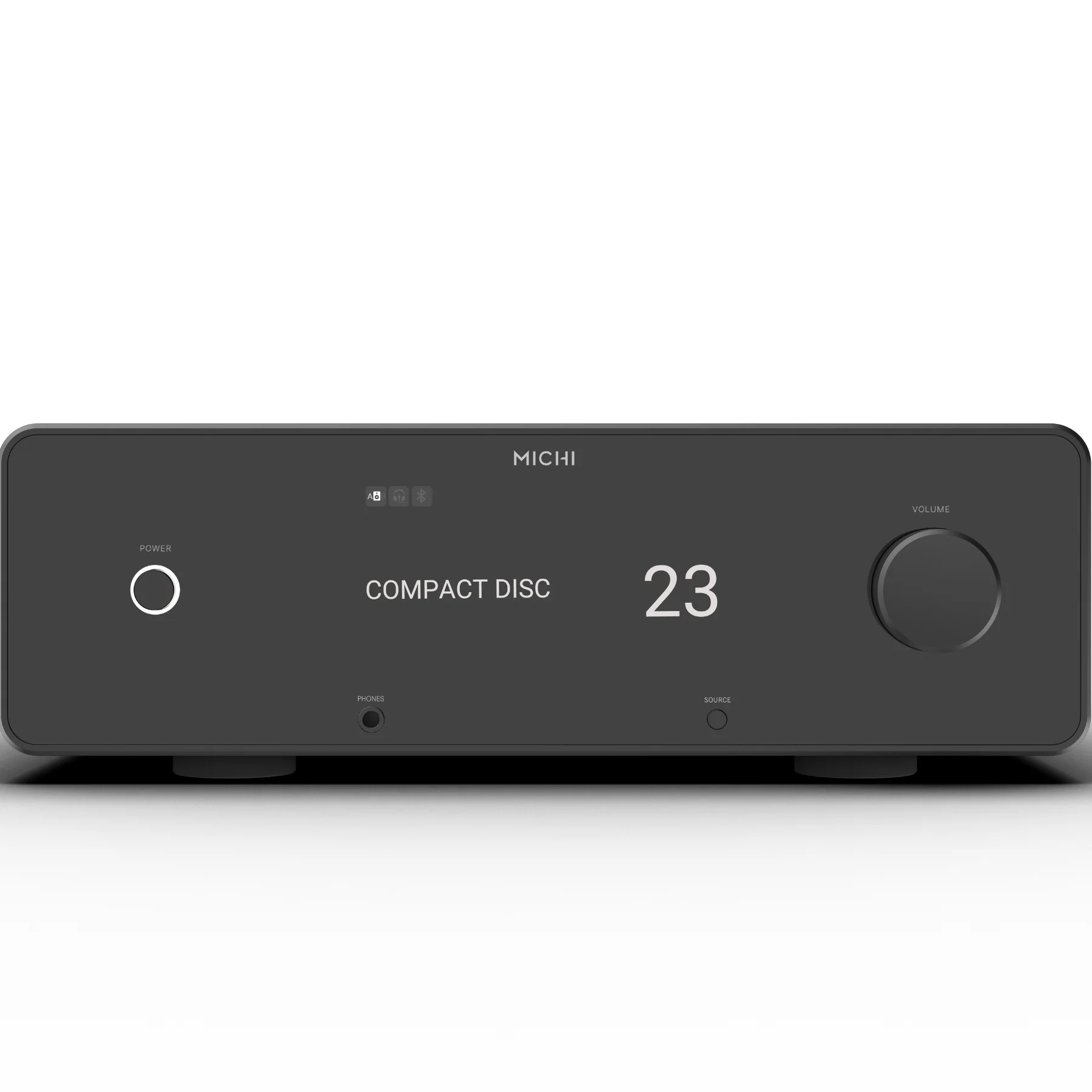

• Customizable glass front panel display with high-resolution color screen, including spectrum analyzer and VU meters

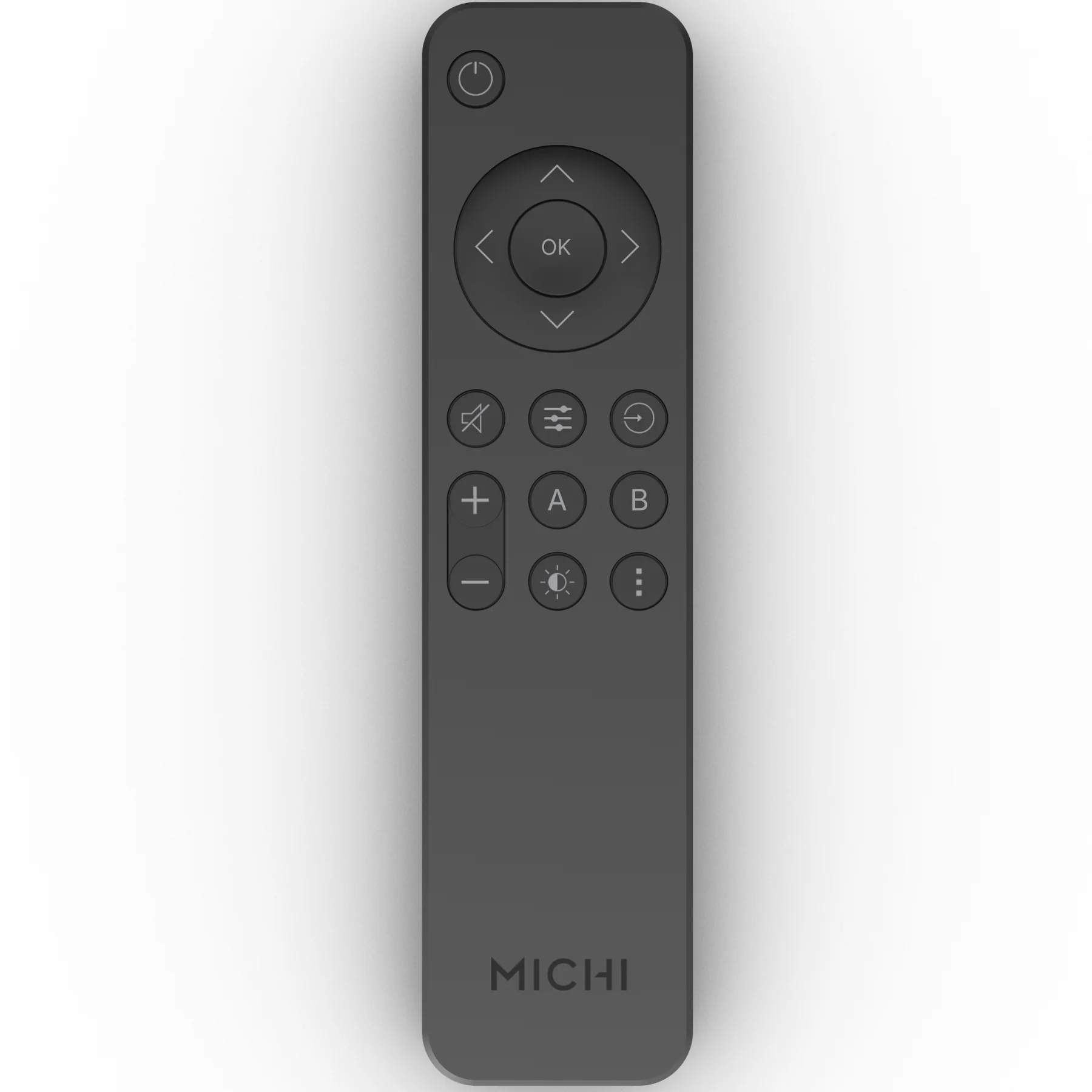

• Includes premium remote control for convenient system operation

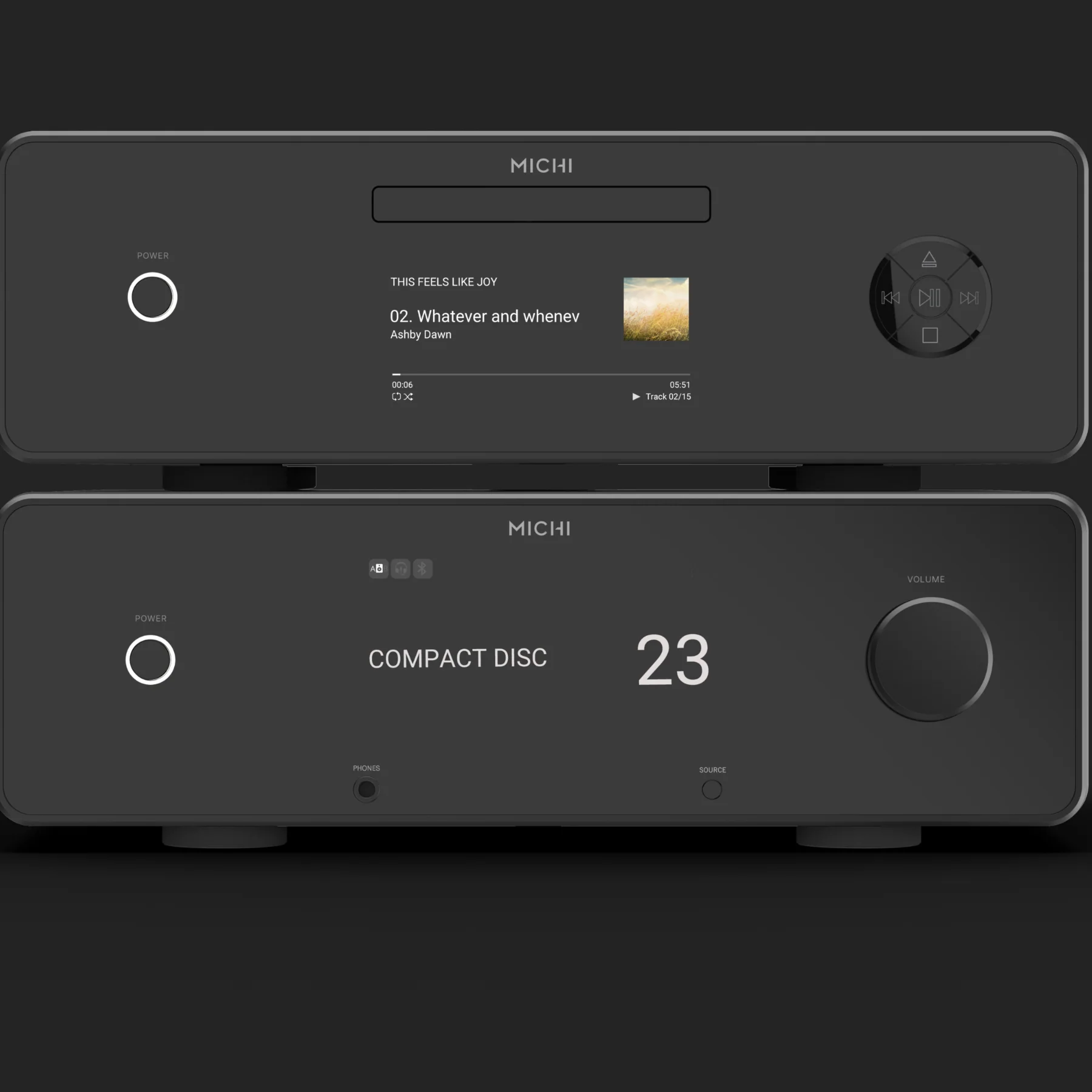

See the matching Michi Prestige Q430 CD Player.

Rotel Michi X430 Specifications:

Power Output:

Continuous (Non FTC): 210 watts/channel (8 ohms)

FTC: 220 watts/channel (8 ohms)

Maximum (Non FTC): 340 watts/channel (4 ohms)

Total Harmonic Distortion (THD): < 0.03%

Intermodulation Distortion (60 Hz : 7 kHz, 4:1): < 0.03%

Frequency Response:

Phono Input: 20 Hz-20k Hz (+0 dB, -0.5 dB)

Line Level Inputs: 10 Hz-100k Hz (+0 dB, -0.5 dB)

Damping Factor (20 Hz - 20kHz, 8 ohms): 260

Input Sensitivity / Impedance:

Phono Input (MM): 5.56 mV / 47k ohms

Line Level Inputs (RCA):356 mV / 100k ohms

Line Level Inputs (XLR): 743 mV / 50k ohms

Input Overload:

Phono Input (MM): 66 mV

Line Level Inputs (RCA): 4 V

Line Level Inputs (XLR): 10 V

Signal to Noise Ratio (IHF “A” weighted):

Phono Input: > 80 dB

Line Level Inputs (RCA): > 105 dB

Line Level Inputs (XLR): > 100 dB

Preamplifier Output Level / Impedance: 1.92 V / 100 ohms

Tone Controls

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10k Hz

Channel Separation

Phono Input: > 55 dB

Line Level Inputs: > 55 dB

Digital Section

Frequency Response: 10 Hz - 20k Hz (+0,-0.4 dB, Max)

Signal to Noise Ratio (IHF “A” weighted): > 110 dB

Input Sensitivity/Impedance: 0 dBFs / 75 ohms

Preamplifier Output Level: 1.15 V (at -20 dB Volume Position)

Digital to Analog Converter: ESS ES9039Q2M DAC

Coaxial/Optical Digital Signals: SPDIF LPCM (up to 192kHz 24 bit)

PC-USB:

USB Audio Class 2.0 (up to 384kHz 32-bit)*

*Driver installation required

Support DSD (up to 4X, 11.2MHz)

and DoP (up to 2X, 5.6MHz)

Roon Tested

HDMI: Support CEC with ARC function 2-channel PCM only (up to 48 kHz, 24-bit)

Power Requirements: 120 V, 60 Hz

Power Consumption: 520 watts

Standby Power Consumption: Normal < 0.5 watts | Network Wakeup < 2 watts

Dimensions: 17” W x 6” H x 16.5” D

Front Panel Height: 5.25”

Weight (net): 37.3 lbs

Finish: Black
