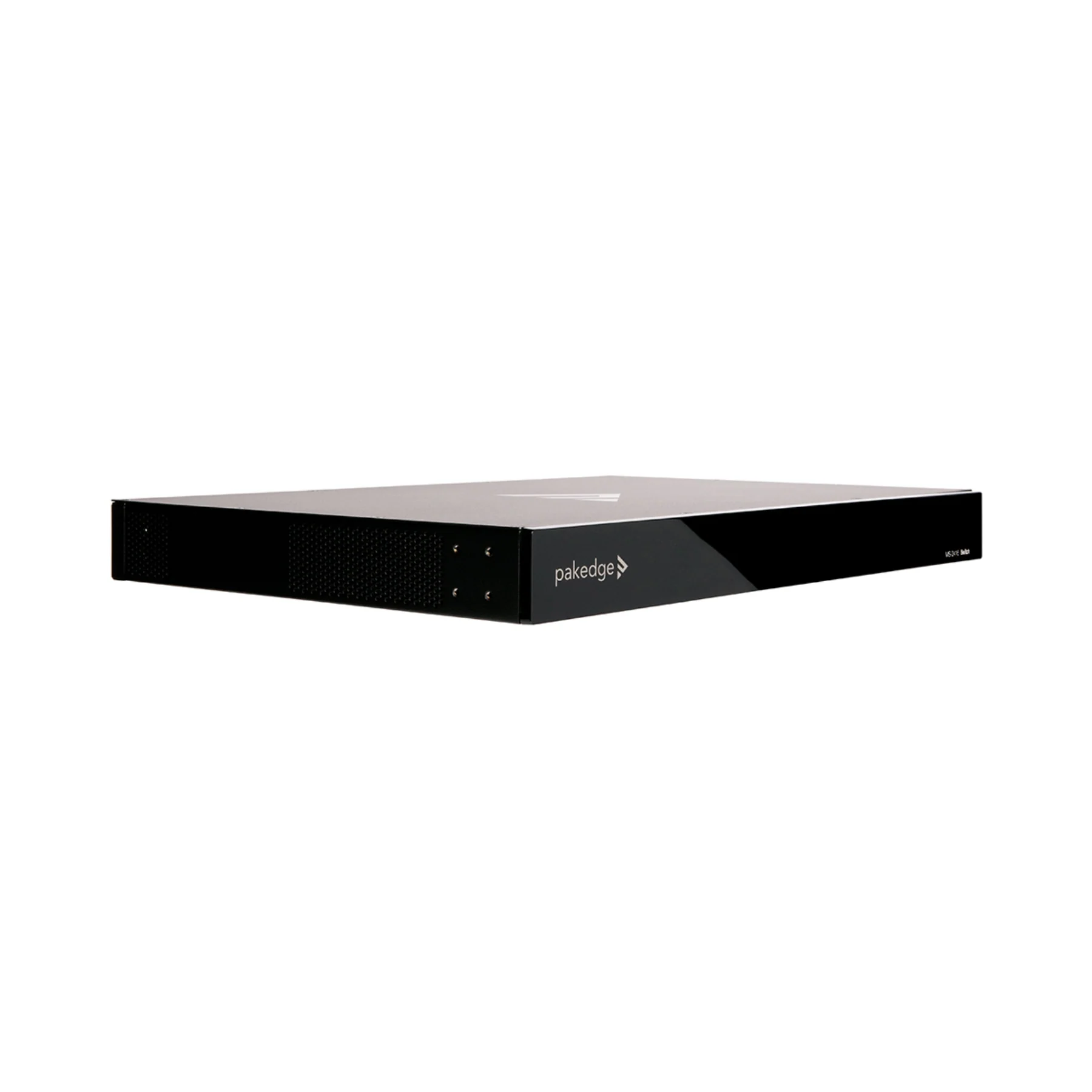

Pakedge MS-2416 MS Series Layer 3 Managed Switch with OvrC, 24 1G, 16 PoE+, 245W, 2 10G SFP+ - Clearance / Open Box

MS-2416 - Layer 3 Switches with OvrC

Pakedge MS Series Layer 3 Managed Switches are ideal for your most performance-demanding luxury residential, commercial, and pro-AV projects. When your clients require flawless video streaming, synchronized media distribution, and uninterrupted
productivity, MS Series switches deliver with commercial-grade performance and convenient versatility.

The MS Series was designed based on extensive dealer feedback with features including rear-facing ports, PoE+ power budgeting, and the option for either plug-and-play setup for basic installs or advanced Layer 3 functionality for more complex projects. With five 12-, 24-, and 44-port models in a variety of PoE+ configurations and a range of 1 Gbps Ethernet and optional 10 Gbps SFP+ uplinks on every switch, there’s an MS switch to meet the needs of every install.

MS Series switches come with free OvrC remote management and monitoring built in with no additional hardware required, so you can stay connected and provide world-class customer service from anywhere in the world. OvrC also comes with a client-facing mobile app that empowers customers to reboot devices and fix common issues on their own, saving you a costly truck roll.

• Built for performance-demanding residential, commercial, and pro-AV jobs
• 12-, 24-, and 44-port models with PoE+ 1 Gbps Ethernet ports
• Support for Layer 2 & 3 functionality
• Optional 10 Gbps SFP+ uplinks
• Support for audio-over-IP protocols including Dante, AES67, and Q-LAN
• Support for video-over-IP systems with IGMP v2/v3, and PIM
• Built-in OvrC remote management
• Variable-speed fans

Engineered for Ultimate Performance

MS Series switches are designed to handle luxury residential, commercial, and pro-AV jobs and are ideal for customers who demand ultimate performance and reliability. Choose the MS Series switch for large audio and video streaming projects and multi-rack jobs where maximum bandwidth is a must, such as large residential projects or commercial settings like sports bars, retail spaces, and more.

Commercial Grade

MS switches support Layer 2 switch functionality including VLANs, IGMP, and spanning tree, in addition to professional AV protocols like Dante
and Q-LAN. For more advanced commercial or residential jobs, these switches also provide Layer 3 functionality.

Built for Speed

With improved PoE+ budgeting that supports more PoE-powered devices and a range of 1 Gbps Ethernet and optional 1 Gbps and 10 Gbps SFP+ fiber uplinks, these switches are perfect for high-speed switch-to-switch connections and large media or video-over-IP deployments. (SFP+ uplinks require SFP accessories, sold separately.)

Pro-AV Functionality

The MS Series offers support for audio-over-IP protocols including Dante, AES67, and Q-LAN, as well as support for video-over-IP systems with IGMP
v2/v3 and PIM.

Dealer-inspired Versatility

With five switches in 12-, 24-, and 44-port models, the MS Series offers a range of options to fit the needs of every project. For easy installs, we’ve
made the 44-port model a true 1U, while the 12-port models can fit side-by-side on a single 1U space.

OvrC Remote Management

Install, set up, and manage your client’s network from anywhere in the world with built-in OvrC remote management. Pros around the world trust
OvrC, and now you can harness the power of remote management right out of the box with no additional hardware required. With OvrC, you can manage
PoE power and consumption per port, reboot ports, update firmware, and more—all 100% remotely via the OvrC desktop or mobile app.

Client-facing Mobile App

Not only is OvrC completely free to use, it also comes with a free, customizable client-facing mobile app that empowers your customers to reboot devices or fix small issues on their own through a series of pre-configured commands. You can even show them how to manage Wi-Fi access or restrict network content with the push of a button.

Aesthetic and Stress-free Install

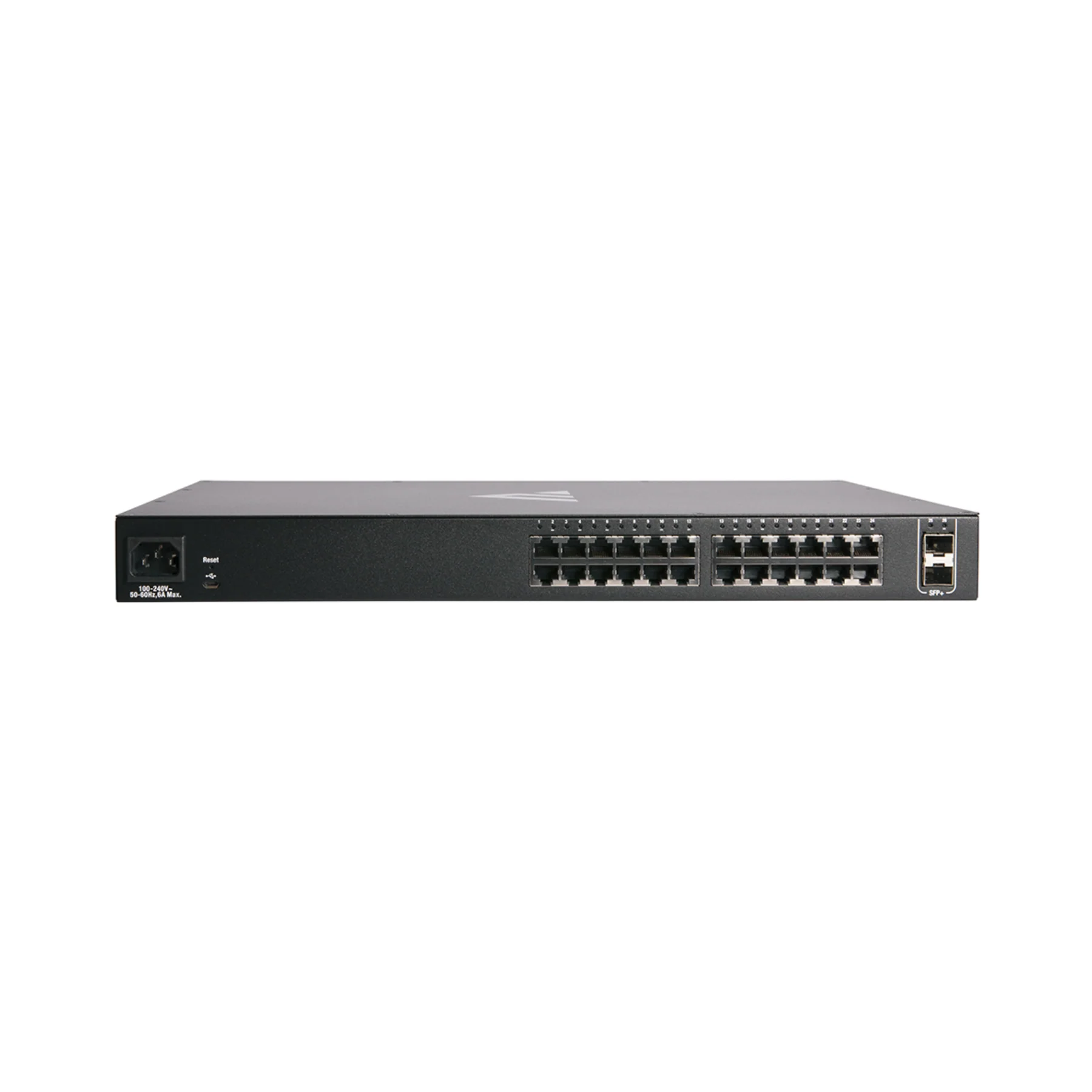

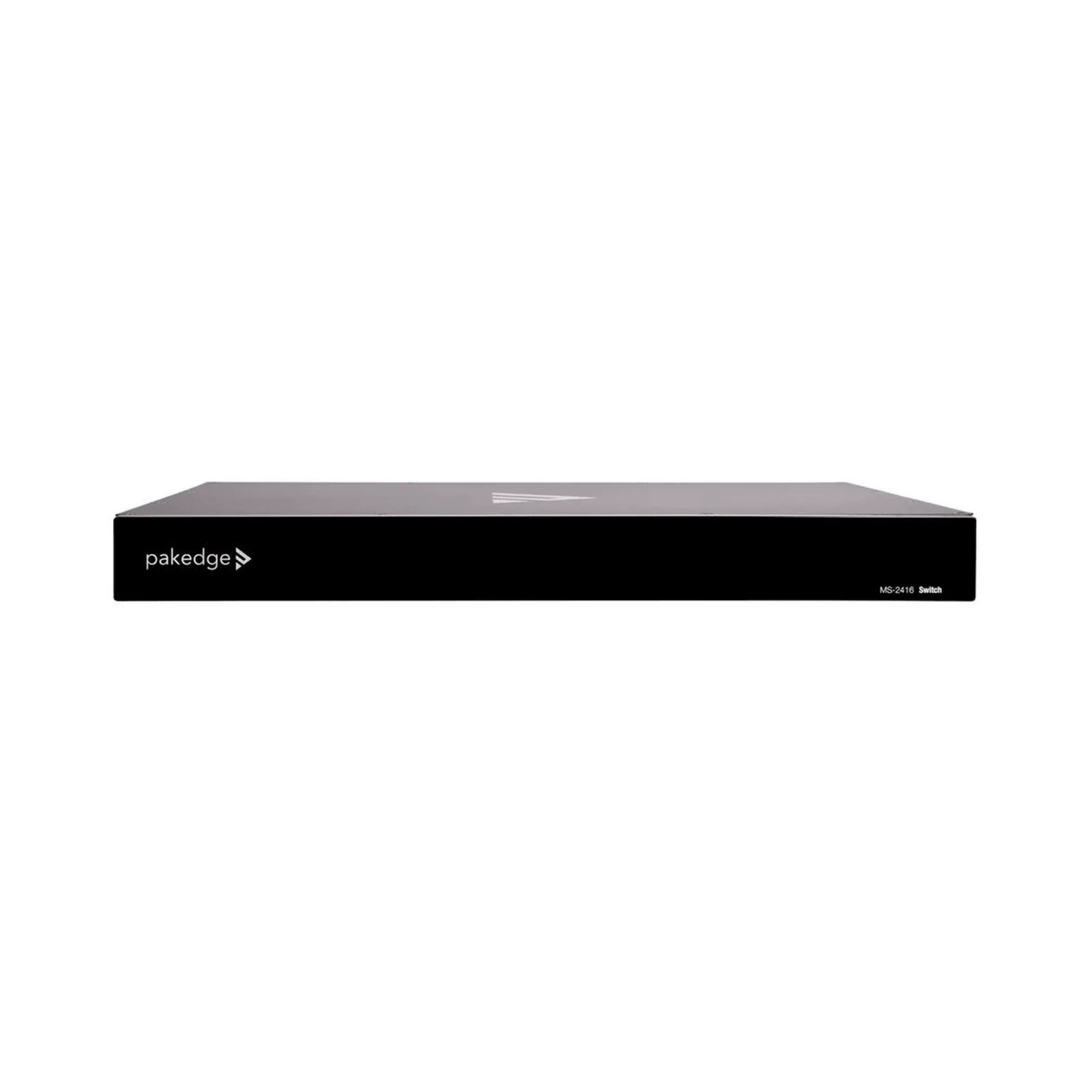

MS Series switches feature an eye-catching matching front panel that you’ll be proud to show off. Rackmounting hardware is included in the box, and rearfacing ports make it easy to deliver a clean look.

Made to Last

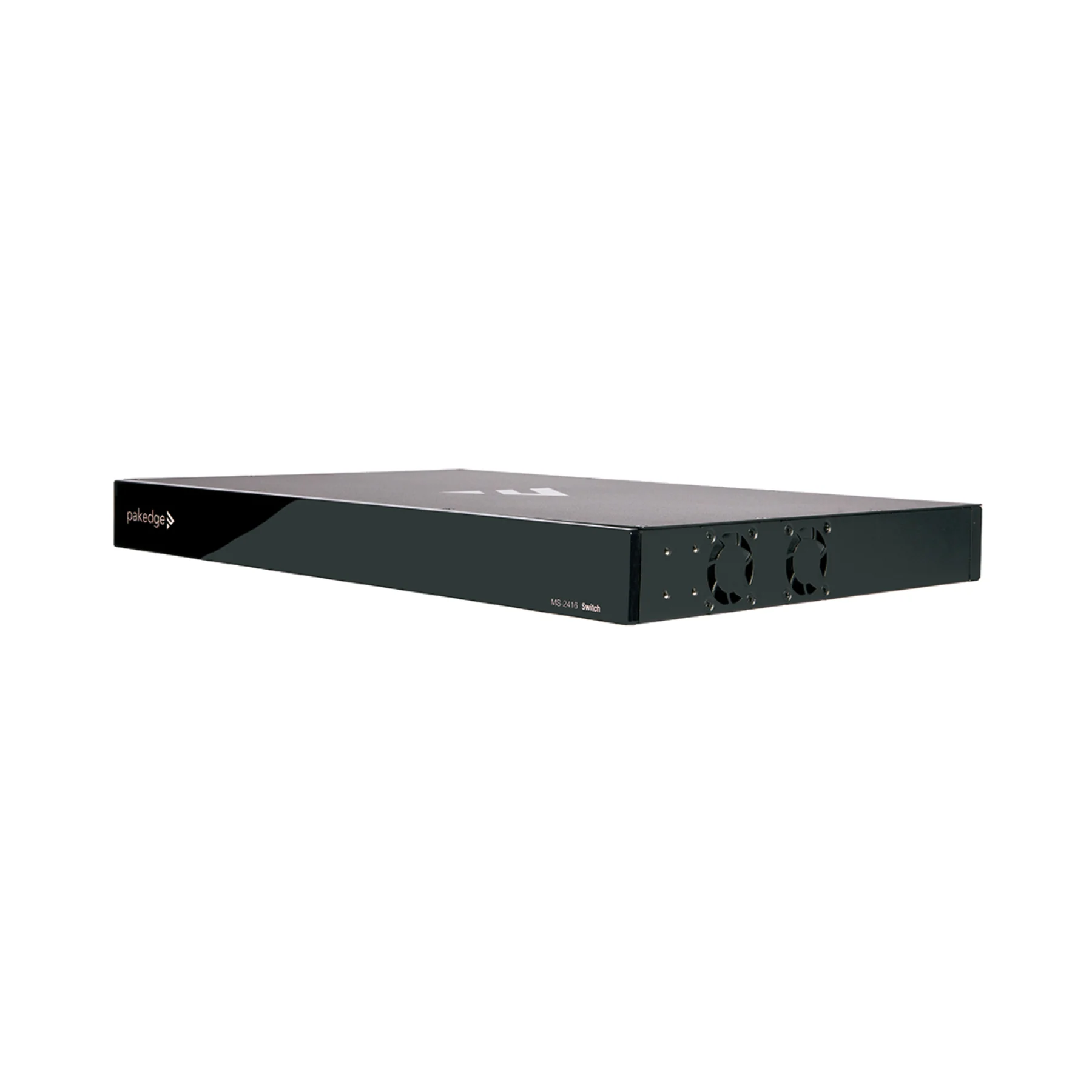

Variable fans provide quiet cooling to protect components, and enhanced cooling will activate in warmer temperatures, ensuring these switches operate safely in any environment. A three-year warranty offers additional peace of mind and gives
you the ability to install with confidence.

SPECIFICATIONS

• Rack Spacing: 1U
• Software Level: Layer 2 + Layer 3
• RJ45 1 Gb ports: 24
• SFP+ uplink 10 Gb ports:
• PoE AT ports: 16
• PoE budget: 245W
• Flash memory: 128 MB
• SDRAM memory: 512 MB
• Packet buffer: 1500 KB
• MAC table size: 16384
• Switching capacity: 88
• Forwarding rate: 65.48 Mpps
• Flow control: 802.3x, back pressure
• Spanning tree: 802.1D (STP), 802.1w (RSTP), 802.1s (MSTP)
• VLAN features: 802.1Q, Auto-voice, port-based, private
• Link aggregation: Static link aggregation, LACP, 6 link aggregation groups, 8 members per link aggregation group
• Multicast features: 256 L2 multicast entries, 8 IPv4 multicast groups, PIM-SM, PIM-SSM
• IGMP features: IGMP v1/v2/v3, Fast Leave, IGMP Querier
• Jumbo frame: 9216 KB
• Storm control: Multicast, broadcast, unicast
• L2 features:
  • HOL blocking, forwarding mode: store-and-forward,
  • Energy-Efficient Ethernet: IEEE 802.3az, LLDP (IEEE 802.1ab), LLDP-MED
• L3 features: ARP, VLAN router interface, port router interface, IP IGMP
• QoS features: 8 priority queues, per-port configuration, SP, WRR
• Security features:
  • Port Security (MAC based), 802.1x PNAC (port based), ACL: L2, L3, L4,
  • IP Source Guard, RADIUS, HTTPS and SSL, SSH v2.0, MAC filter
• Management features: OvrC built in, web GUI, CLI
• DHCP: Client, DHCP snooping, DHCP server filtering,
• Event log: Local flash, remote server
• SNMP: v1, v2, v3
• Dimensions (WxHxD): 443×43×303 mm (17.44×1.69×11.94")
• Line voltage: 100-240V AC, 50/60 Hz
• Power consumption (max): 294.4W
• Operating temperature: 0 to 45 °C (32 to 113 °F)
• Storage temperature: -30 to 70 °C (-22 to 158 °F)
• Operating humidity: 10–90% RH
• Weight: 3.81 kg (8.40 lb)
• Fan noise (speeds 1-3): 22.3–41.2 dB
• Max BTU/hr: 86.26
