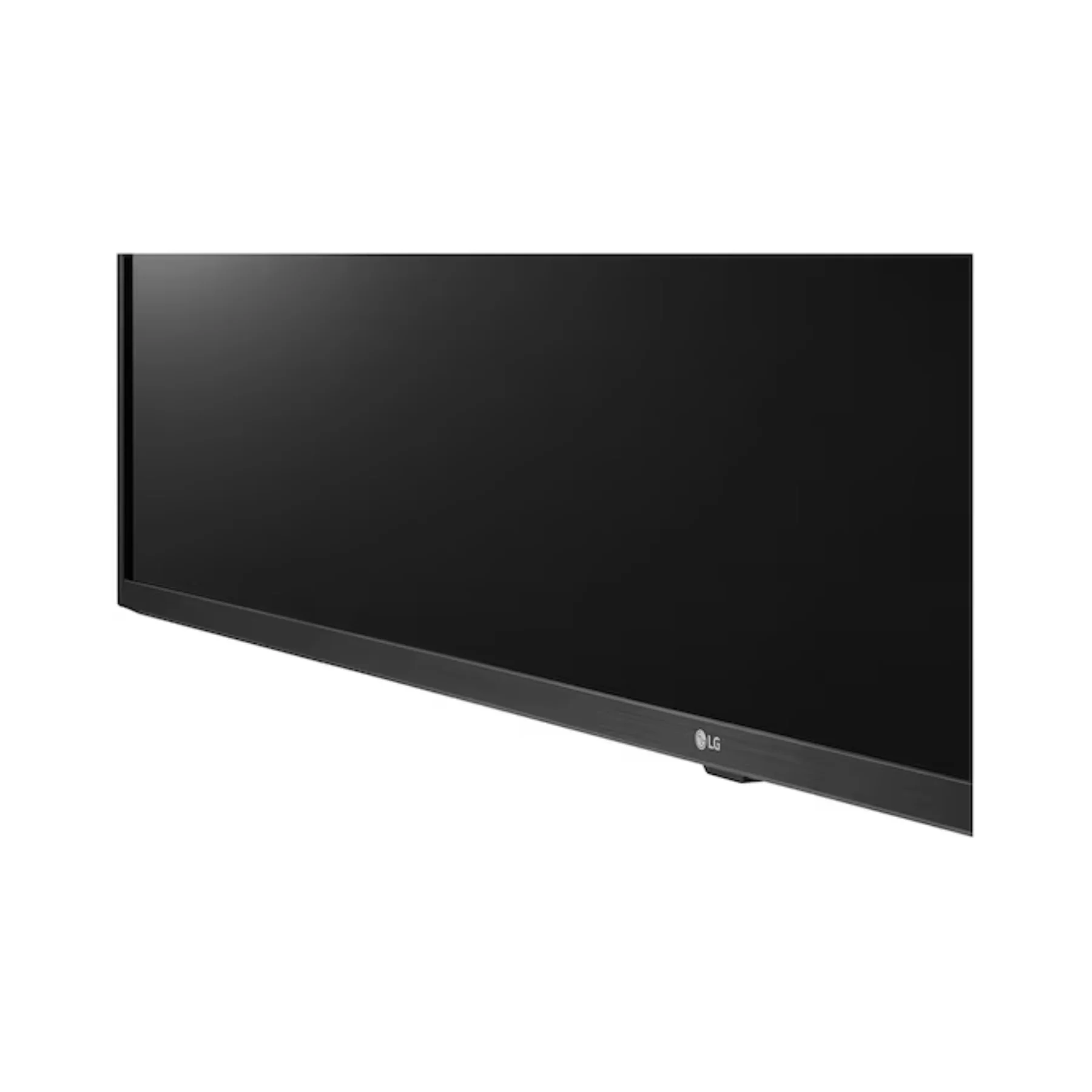

LG 65UL3G-B 65" 400 nits 60 Hz UHD Signage - Clearance / Open Box

65UL3G-B 65" 400 nits 60 Hz UHD Signage

An Ultra HD large display, the UL3G Series will improve business productivity in any location. All content is delivered in vivid colours and with fine details, giving audiences a clearer viewing experience.

With the resolution that is 4 times higher than FHD, it makes the colour and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear contents with no distortion.

• Brightness(Typ.) : 400 cd/m²
• Bezel : 15.5 mm (R/L/T), 22.3 mm (B)
• Depth : 87.8 mm (65") / 87.1 mm (55")
• Interface : HDMI(3), USB 2.0(2), RS232C In/Out, RJ45 In, Audio Out
• Built-in Speaker

High Efficiency Video Coding

The UL3G Series supports HEVC which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic than the existing H.264 codec.

High Performance SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

Compatibility with AV Control System

The UL3G Series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.

Compatibility with Conferencing System

The certification of compatibility between the UL3G Series and Cisco System that offers powerful and integrated control for video conference is in progress. It will promote the optimal visual meeting by eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

Remote Monitoring and Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UL3G Series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

Real-time Care Service with LG Signage365Care

The maintenance gets easier and faster with an optional service Signage365Care, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.

Specifications

PANEL

• Screen Size: 65"
• Panel Technology: IPS
• Back Light Type: Direct
• Aspect Ratio: 16:9
• Native Resolution: 3840 x 2160 (UHD)
• Refresh Rate: 60Hz
• Brightness(Typ.,cd/m²): 400
• Contrast Ratio: 1.200:1
• Dynamic CR: 1,000,000:1
• Colour gamut: DCI 80%
• Viewing Angle (H x V): 178 x 178
• Color Depth: 8bit+FRC, 1.07G colours
• Response Time: 8ms (G to G)
• Surface Treatment (Haze): Haze 1%
• Life Time (Min.): 30,000 Hrs
• Operation Hours (Hours / Day): 16 / 7
• Portrait / Landscape: No / Yes

CONNECTIVITY

• Input: HDMI (3, HDCP2.2/1.4), USB 2.0 Type A (2)
• Output: Audio
• External Control: RS232C IN (4 pin phone-jack), RJ45 (LAN)

ENVIRONMENT CONDITIONS

• Operation Temperature: 0°C to 40°C
• Operation Humidity: 10% ~ 80%

POWER

• Power Supply: AC 100-240V~, 50/60Hz
• Power Type: Built-In Power

POWER CONSUMPTION

• Typ. /Max: 140W / 200W
• BTU (British Thermal Unit): 478 BTU/Hr(Typ.), 683 BTU/Hr(Max)
• Smart Energy Saving: 98 W
• DPM: 0.5W
• Power off: 0.5 W

ACCESSORY

• Basic: Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Stand, Cable Holder

SOFTWARE COMPATIBILITY

• Content Management Software: SuperSign CMS
• Control and Monitoring Software: SuperSign Control+ / Control
• SuperSign WB: Yes
• SuperSign Media Editor: Yes
• Signage365Care: Yes

MECHANICAL SPECIFICATION

• Bezel Colour: Ceramic Black
• Bezel Width: 15.5mm (R/L/T), 22.3mm (B)
• Weight(Head): 21.3Kg / 47 lbs
• Weight (Head+Stand): 21.6 kg / 47.6 lbs
• Packed Weight: 28.4 kg / 62.6 lbs
• Monitor Dimension (W × H × D): 1,463 x 850 x 87.8mm / 57.6 x 33.5 x 3.5 "
• Monitor incl. Stand Dimensions (W x H x D): 1,463 x 914 x 269mm / 57.6 x 36 x 10.6 "
• Carton Dimensions (W × H × D): 1600 x 970 x 190 mm / 62.9 x 38.2 x 10.6 "
• Handle: No
• VESA™ Standard Mount Interface: 300 x 300

SOUND

• Speaker: Yes

CERTIFICATION

• Safety: CB / UL (TBD)
• EMC: FCC Class “A” / CE / KC (TBD)
• ErP / Energy Star: Yes (EU Only) / No

KEY FEATURE

• Internal Memory: 8GB
• Wi-Fi: Built-in
• Sensor: Temperature Sensor, Auto Brightness Sensor
• Local Key Operation: Yes (Power On/Off only)
• webOS ver.: webOS 4.1
• Embedded CMS: Local Contents Scheduling, Group Manager
• USB Plug & Play: Yes
• Fail over: Yes
• SW - Background Image - Booting Logo Image: Yes
• SW - Background Image - No Signal Image: Yes
• Sync mode: RS-232C Sync, Local Network Sync
• Screen Share: Yes
• Video Tag: Yes (4, Max One HDMI input)
• Play via URL: Yes
• Gapless Playback: Yes
• Setting Data Cloning: Yes
• SNMP: Yes
• ISM Mode (Image Sticking Minimization): Yes
• Auto Set ID: Yes
• Status Mailing: Yes
• Control Manager: Yes
• 3rd Party Control Compatibility: Yes
• Beacon: Yes
• HDMI-CEC: Yes
• SI Server Setting: Yes
• webRTC: Yes
• Pro:Idiom: Yes

LANGUAGE

• OSD: English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Arabic
