KEF Ci130QSfl Flush Mount Ci-Q Series In-Wall Speaker

KEF Ci130QSfl Flush Mount Ci-Q Series In-Wall Speaker - High-Quality Sound, Easy Installation

The KEF Ci130QSfl Flush Mount Architectural Speaker. Engineered for seamless integration and premium sound performance, this frameless speaker is perfect for modern homes seeking minimalist aesthetics without compromising on audio quality.

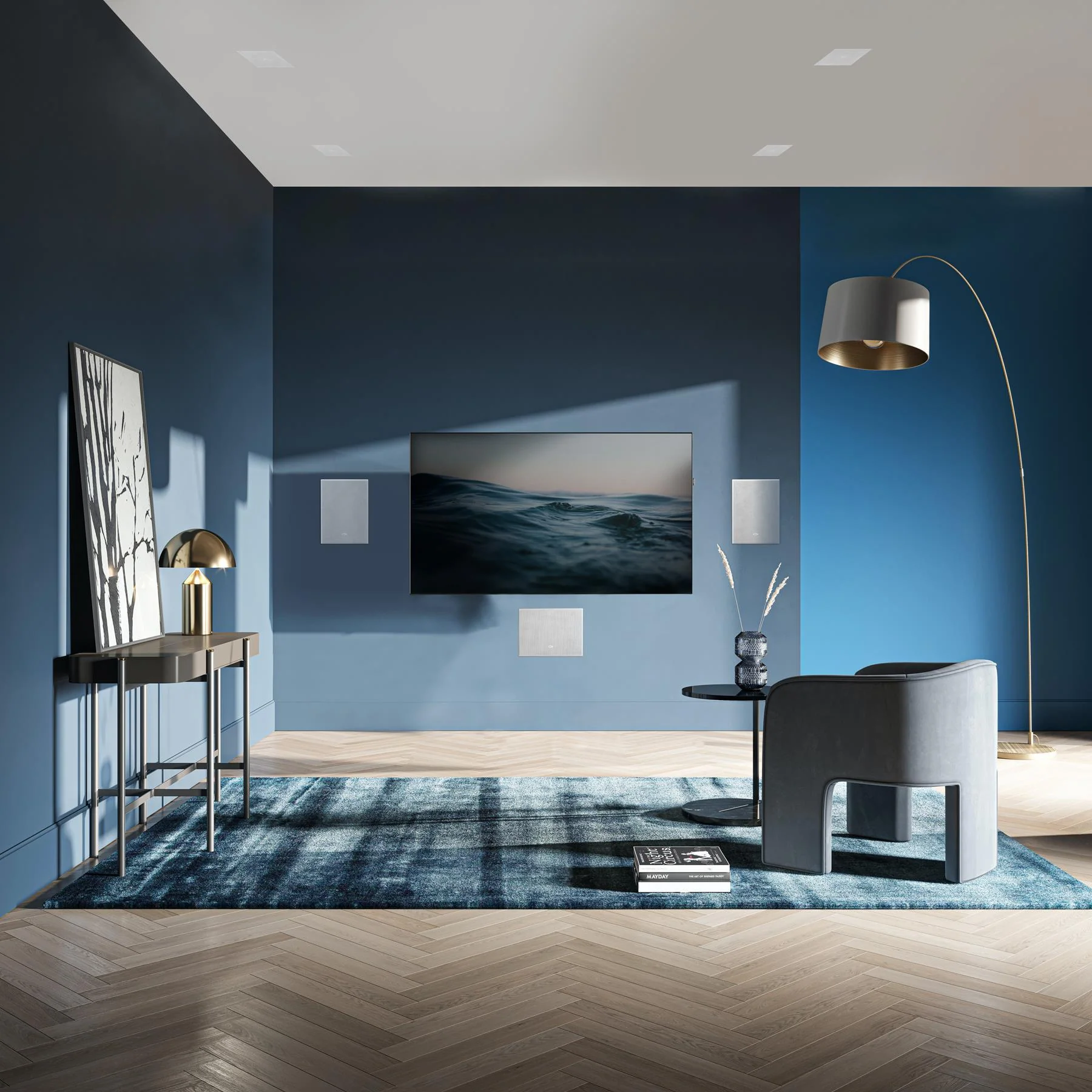

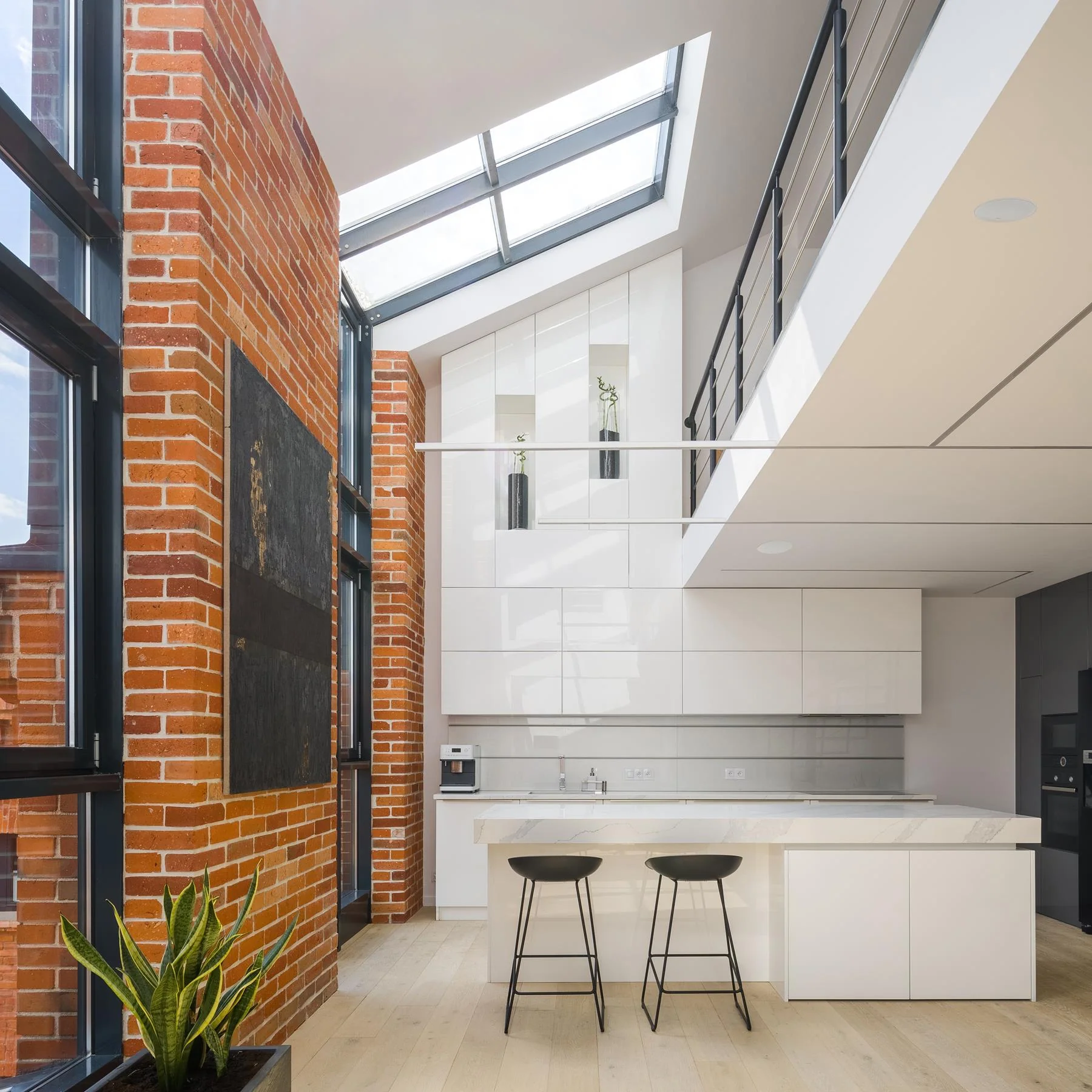

The KEF Ci130QSfl is meticulously crafted for both new constructions and retrofits, offering an effortless installation process that ensures a sleek, flush finish with your wall or ceiling. Its square format complements contemporary design trends, while the Uni-Q driver array technology delivers natural, wide dispersion sound throughout the room, eliminating the need for a designated 'sweet spot.'

KEF Ci130QSfl Key Features:

• KEF “Sit Anywhere” Uni-Q® Technology ensures consistent sound dispersion throughout the room, eliminating acoustic lobing issues.
• Tangerine Waveguide™ enhances dispersion for optimal coverage in any seating position.

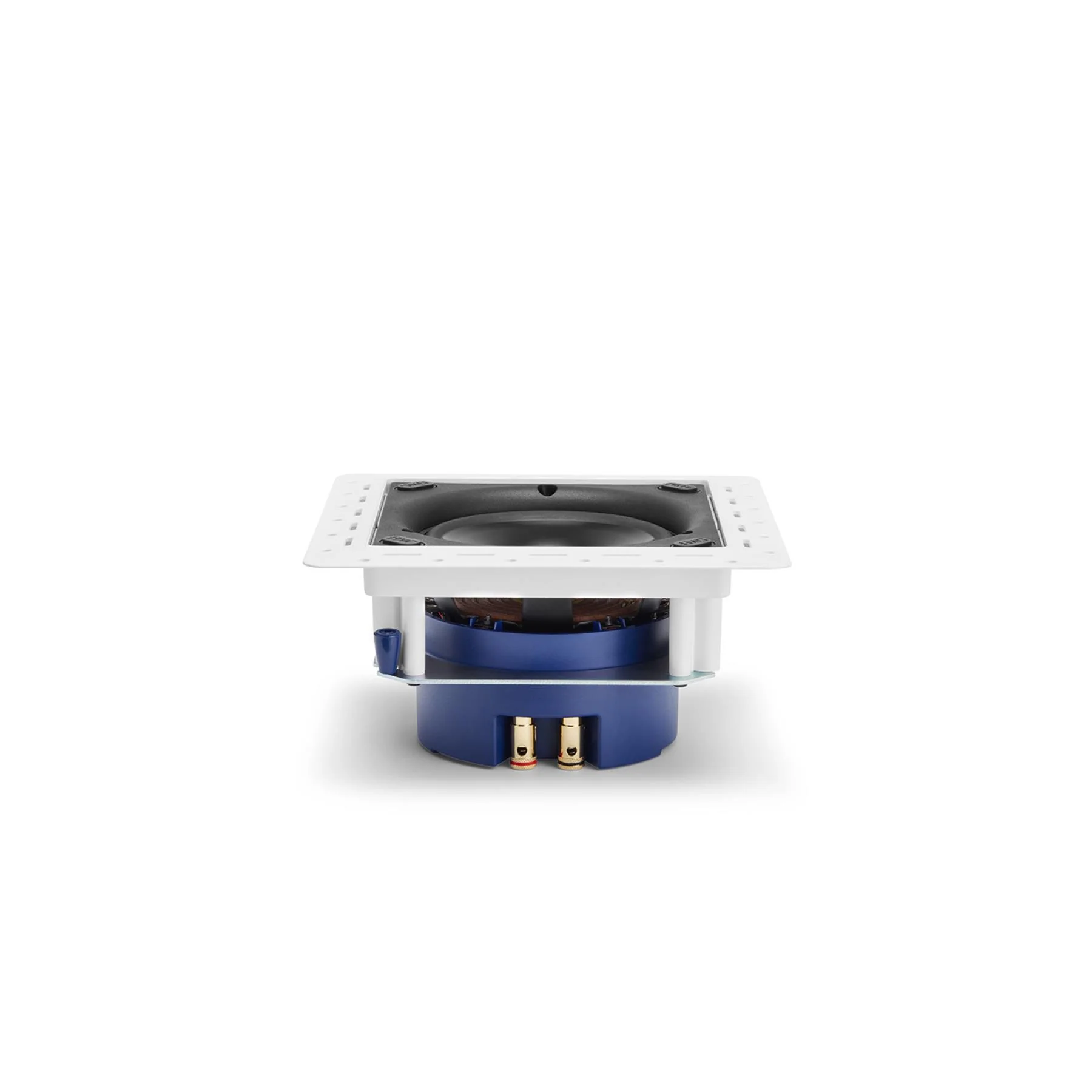

• Flush Mount Installation with a frameless design for seamless integration.

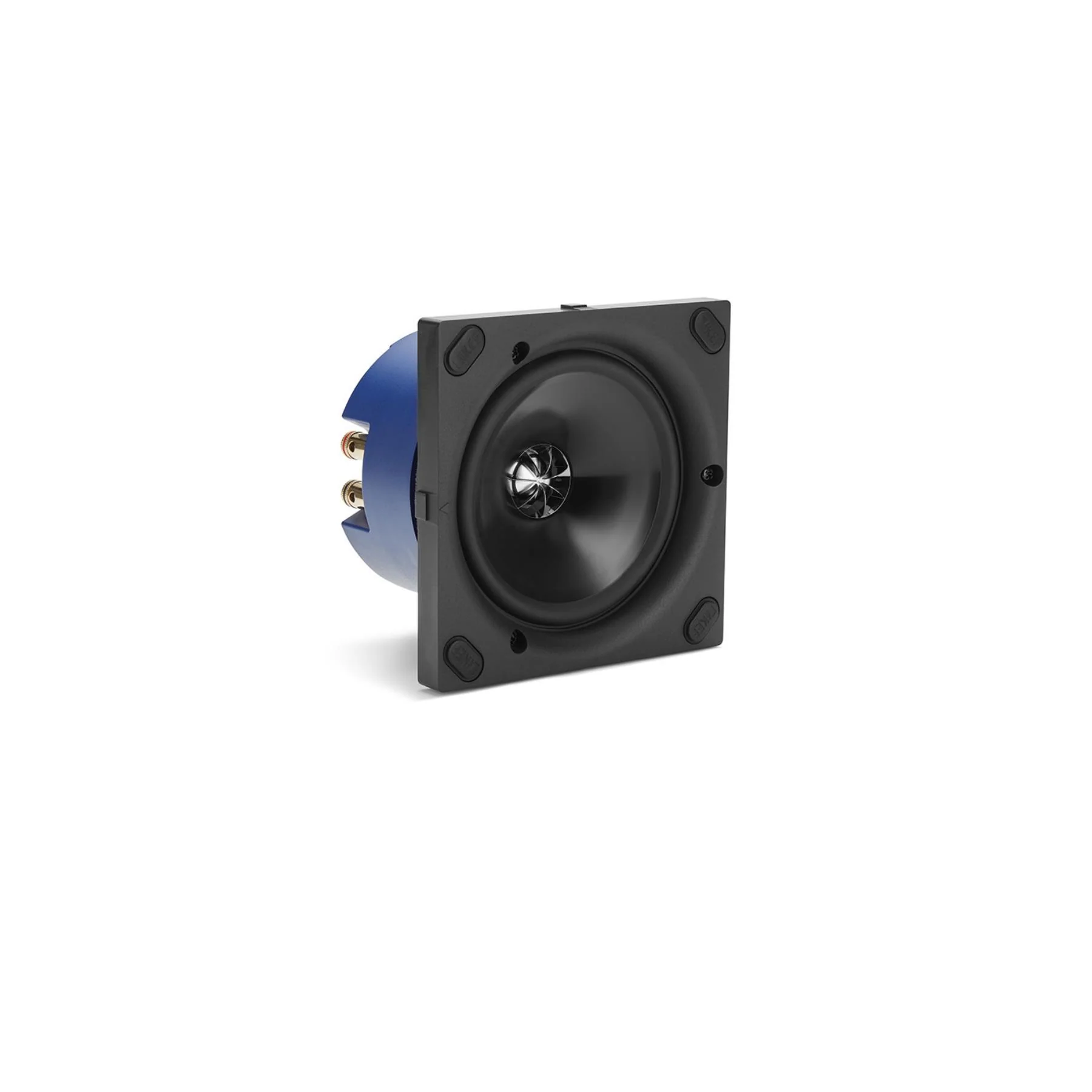

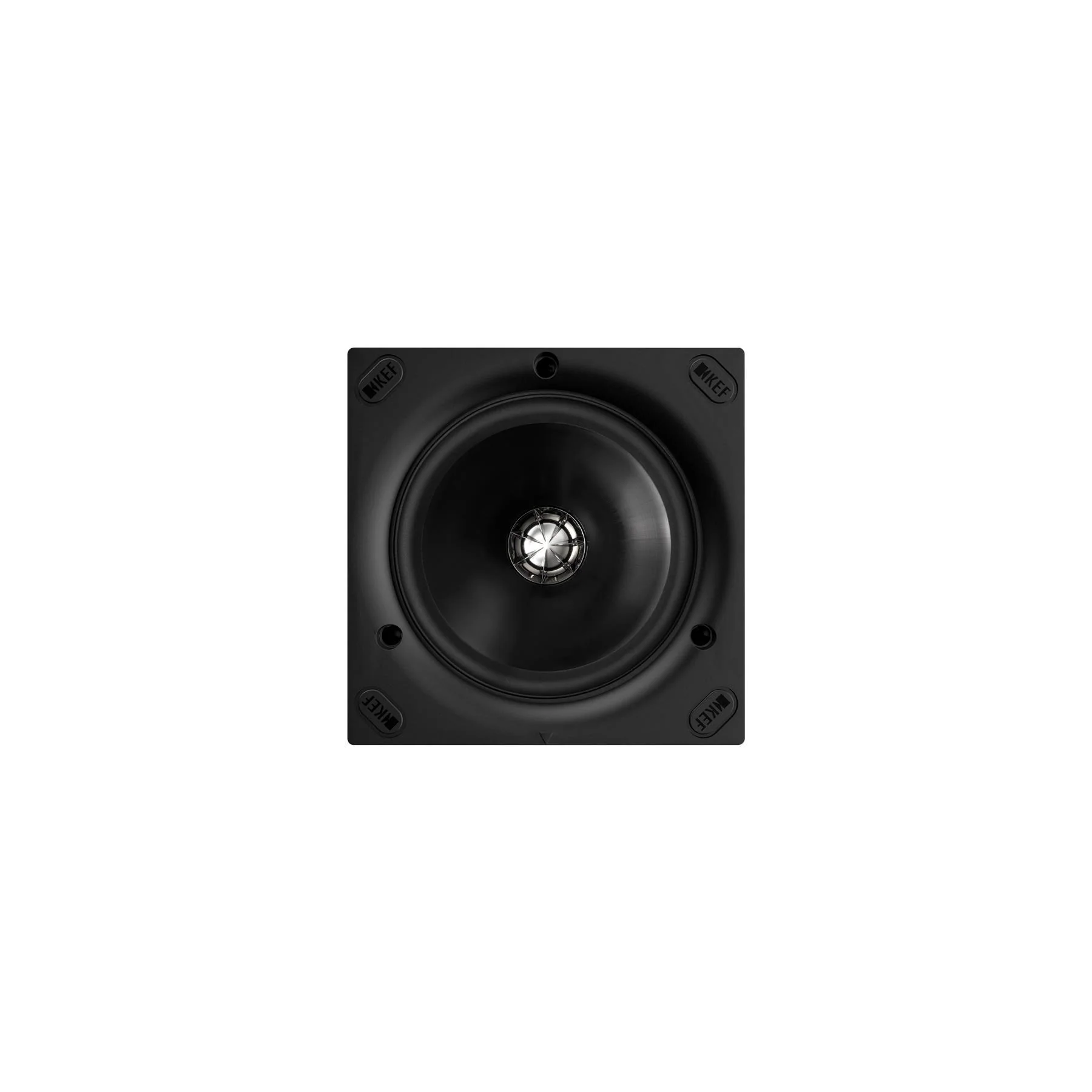

• Uni-Q Driver Array combines a 130mm (5.25in) MF/LF driver and a 19mm (0.75in) HF driver for pristine sound.
• Easy to Install during the plastering process for added convenience.

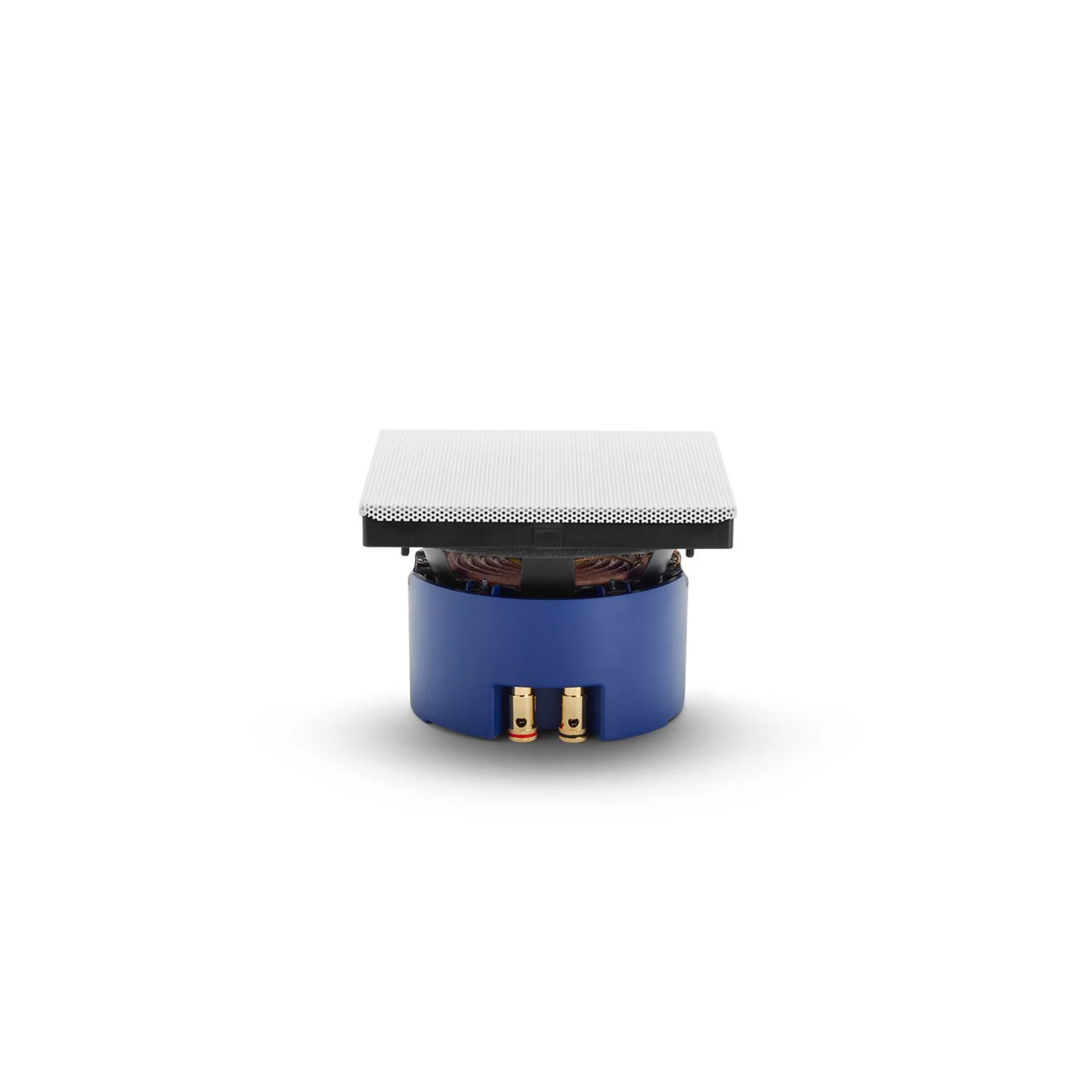

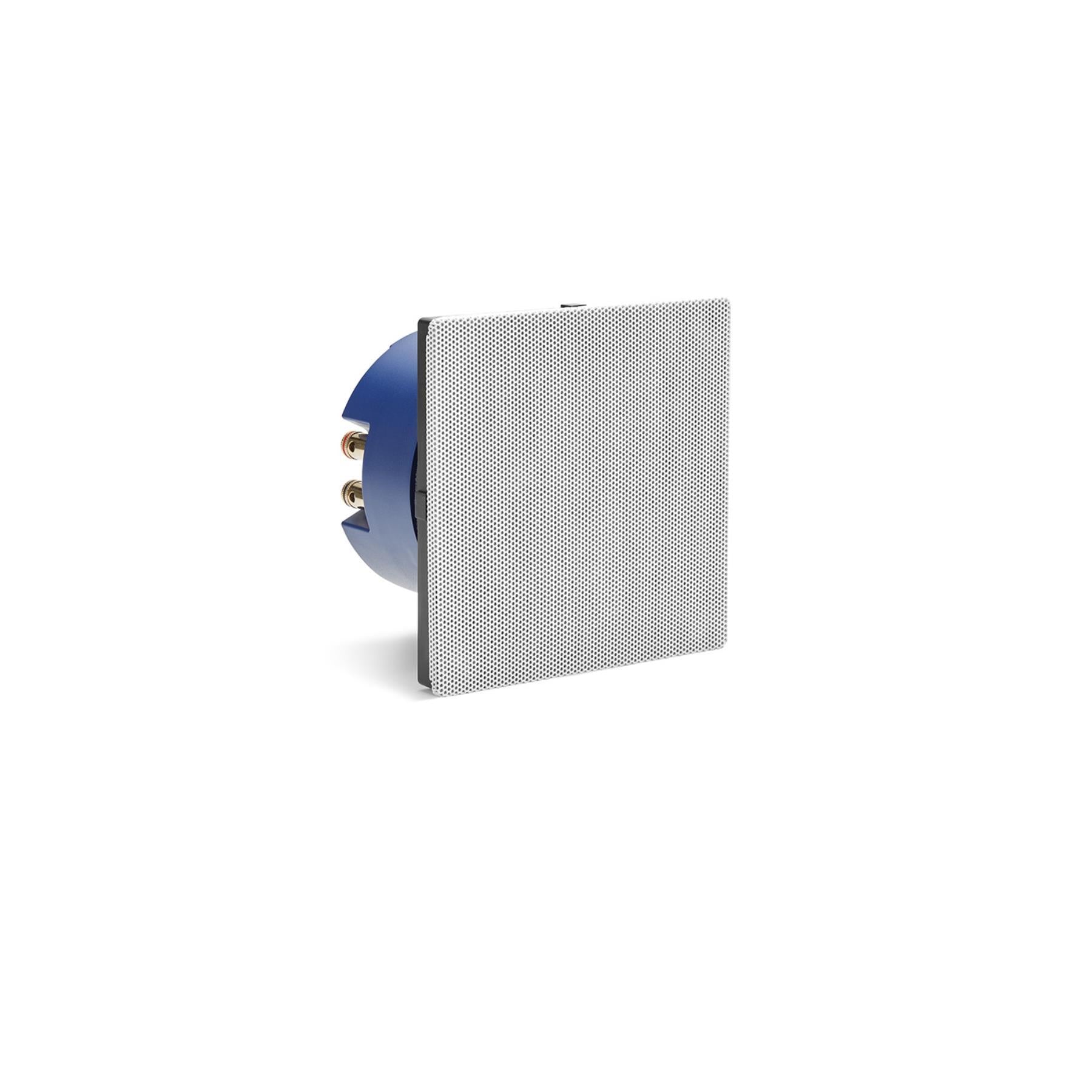

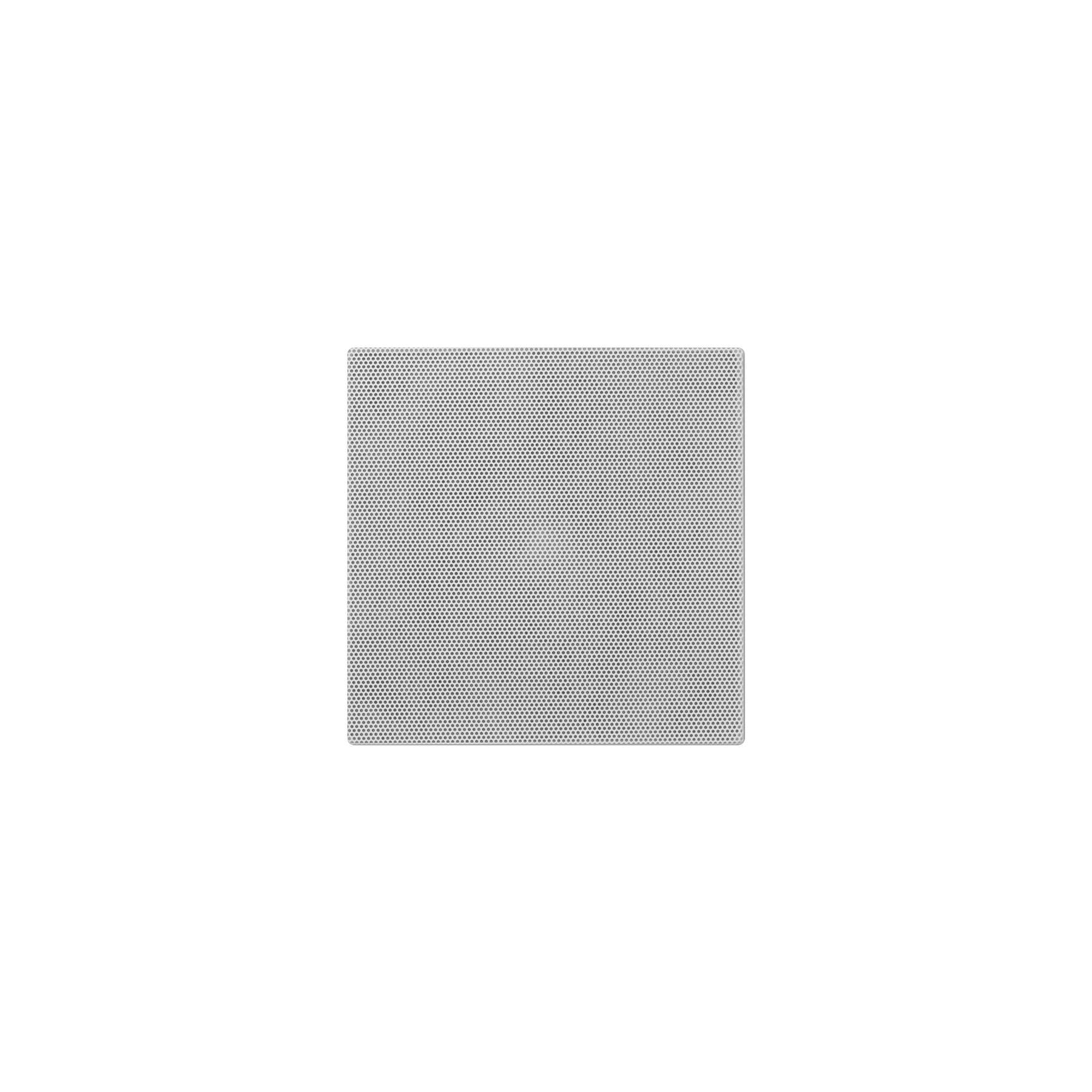

• Magnetic Grille attaches securely with a powerful magnetic circuit and can be painted to match any décor.

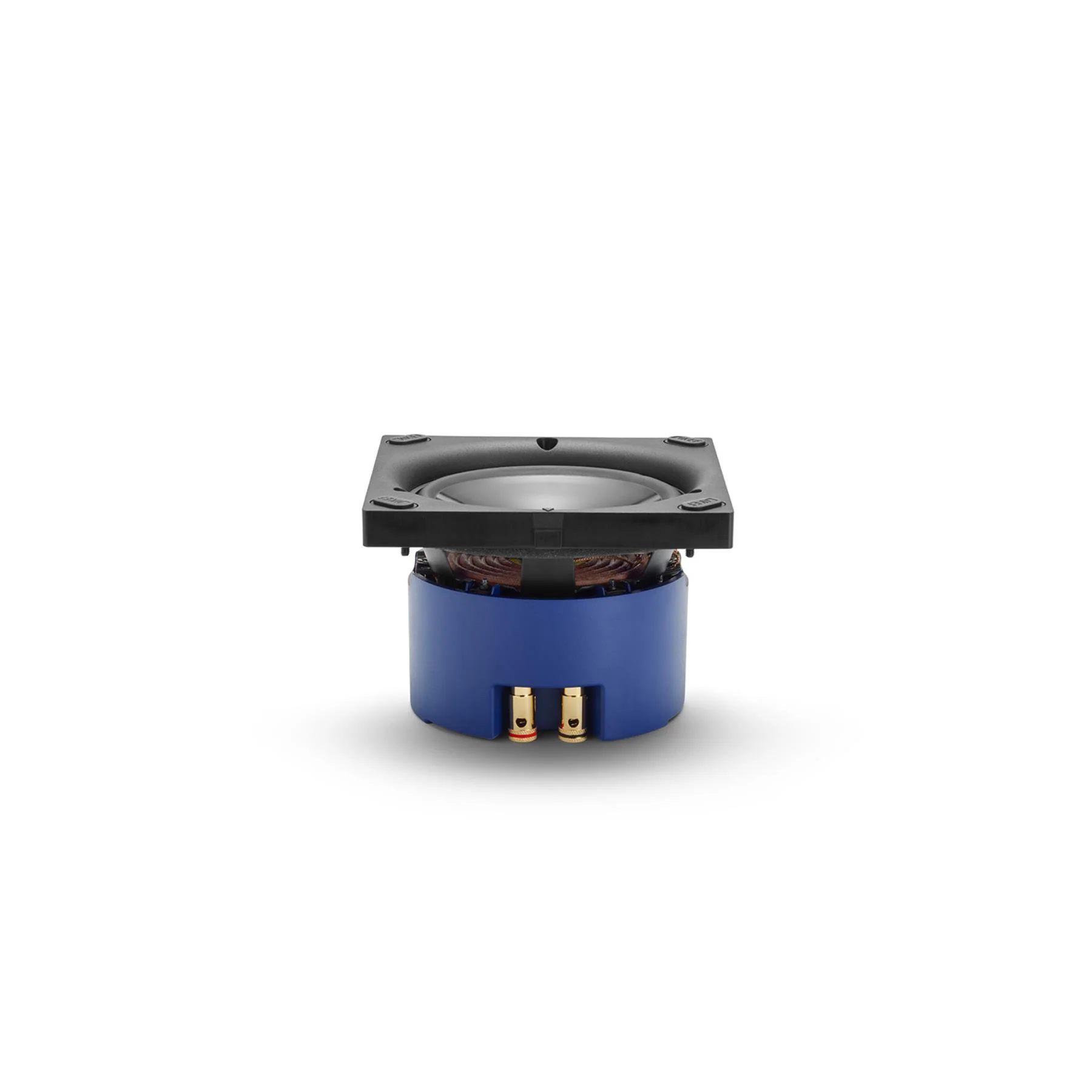

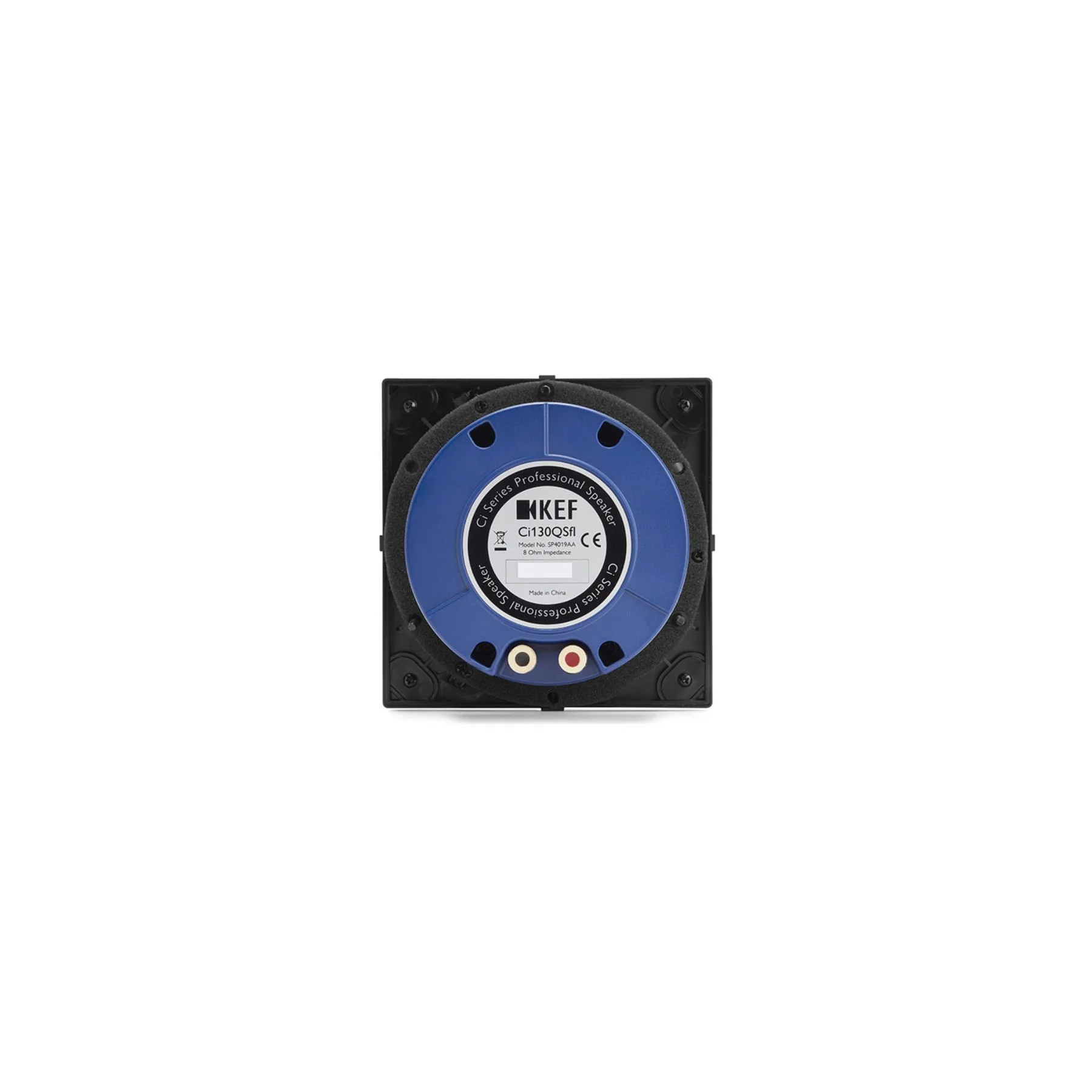

• Gold-Plated Spring Loaded Binding Posts ensure proper electrical transfer for optimal performance.
• Covered Crossover Circuit protects electrical components from potential damage.
• Choice of Formats available in both round (Ci130QRfl) and square (Ci130QSfl) options to suit your preferences.

KEF Ci130QSfl Specifications:

• Nominal Impedance: 8 Ohms
• Sensitivity: 87dB (2.83V/1m)
• Frequency Response (±6DB): Open-Backed, 45Hz - 34kHz
• Frequency Range (-10DB): 38Hz - 30kHz
• Nominal Coverage: 130
• MAX SPL (DB): 103
• Crossover Frequency: 3.8kHz
• Drive Units: LF: 130mm (5.25in.) Uni-Q, HF: 19mm (0.75in.)
• Recommended Amplifier Power: 10-100W
• Recommended High-Pass Filter (HZ): 50Hz
• Product External Dimensions: 200.5 x 200.5 x 103.6 mm (7.9 x 7.9 x 4.08 in.)
• Cut-Out Dimensions: 158 x 158 mm (6.22 x 6.22 in.)
• Mounting Thickness: Ceiling Thickness (Maximum): 31mm (1.220in.), Ceiling Thickness (Minimum): 8mm (0.315in.)
• Net Weight: 1.6kg (3.53Ibs.)
• Mounting Depth From Surface: 101mm (3.98in.)
• Optional Rough In Frame: NA
• Optional Rear Enclosure: NA
• Ideal Rear Volume(L): 15
• Minimum Rear Volume(L): 10

Enhance your home audio setup with the KEF Ci130QSfl Flush Mount Ci-Q Series In-Wall Speaker, designed for exceptional sound performance and effortless installation.

KEF Ci130QSfl Downloads

KEF Ci130QSfl Manual
KEF Ci130QSfl Specification Sheet
KEF Ci130QSfl Cutout Template
KEF Ci Minimum Cabinet Volume Chart
KEF Architectural Brochure
KEF Architectural Selection And Setup Guide
KEF Architectural Accessory Reference Guide
KEF Architectural Speaker Group Specification Sheet
