Biamp TesiraCONNECT TC-5 5-Port Expansion Device - Clearance / Open Box

TesiraCONNECT TC-5 - Room Connection Device

TesiraCONNECT TC-5 serves as the central connection point for all Biamp devices in a conference room. It simplifies conferencing installations by providing power and media over a single category cable between devices such as Tesira AVB DSPs, USB extenders, PoE+ amplifiers, and microphones. Four of the five Gigabit RJ-45 ports provide PoE+ power (IEEE 802.3at Class 4, 30W) to connected endpoints, while the remaining RJ-45 port is used for DSP connection or daisy-chaining TesiraCONNECT TC-5 devices together.

TesiraCONNECT TC-5 eliminates the need for third-party switches; it works out-of-the-box with Tesira products and does not require any device configuration. The small form factor allows it to be easily mounted to a wall or under a table, or placed above the ceiling or inside a credenza in the conference room.

The TesiraCONNECT TC-5 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Key Features

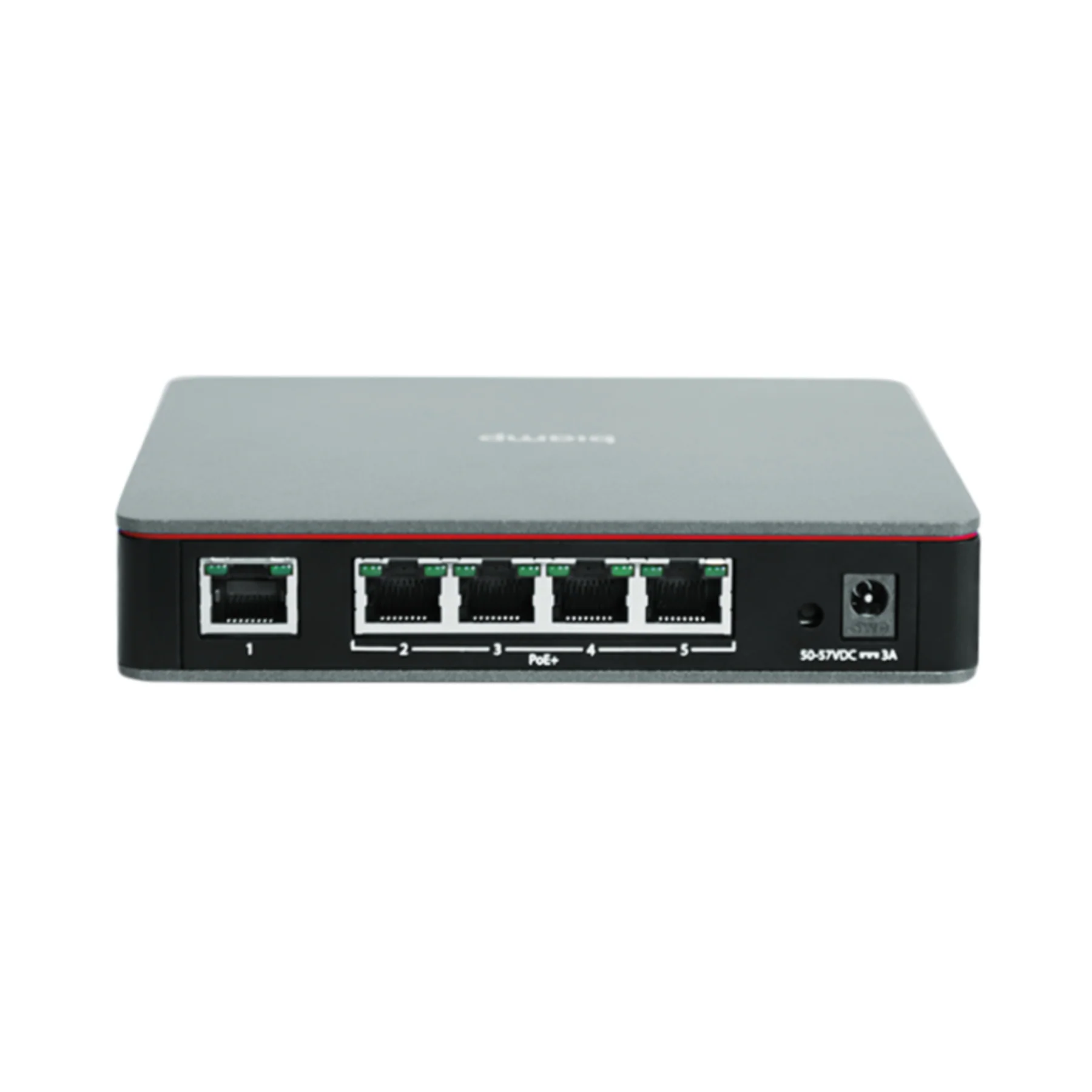

• Five 1 Gbps RJ-45 ports
• Four ports support PoE+ power (IEEE 802.3at Class 4, 30 watts)
• Up to four TesiraCONNECT TC-5 devices can be daisy-chained together

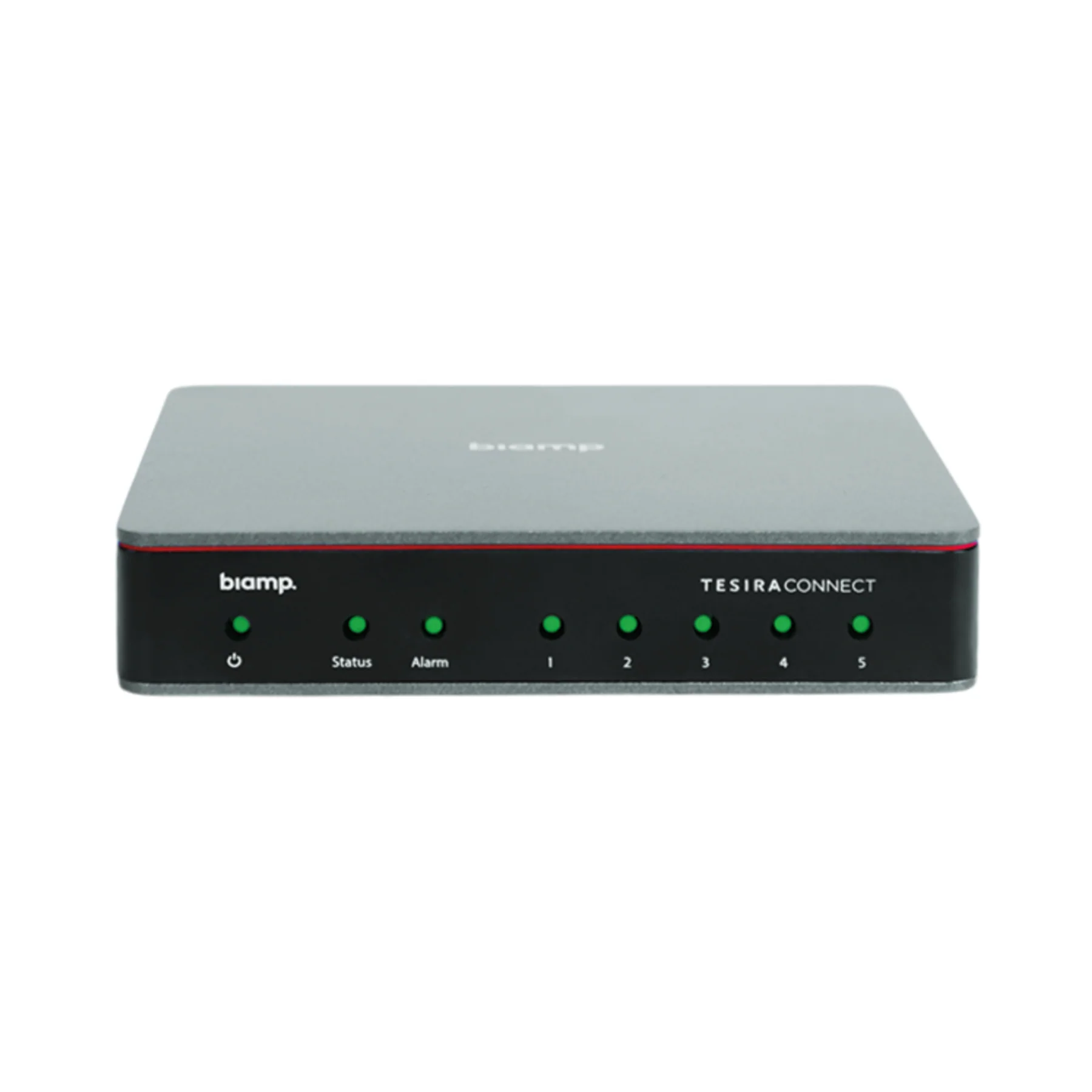

• Front panel LEDs indicate port connections, device status, and fault conditions
• Fault reporting and device monitoring supported in SageVue
• Out-of-the-box compatibility with Tesira conferencing products
• External universal power supply
• CE marked, UL listed, and RoHS compliant
• Compliant with the US Trade Agreement Act (TAA)
• Biamp Workplace Ready

TesiraCONNECT TC-5 SPECIFICATIONS

GENERAL

• Height: 1.1 inches (28 mm)
• Width: 5.8 inches (147 mm)
• Depth: 5.8 inches (147 mm)
• Weight: 1.5 lbs (0.7 kg)

ENVIRONMENTAL

• Ambient Operating Temperature Range: 32-104° F (0–40° C)
• Humidity: 0–95%, non-condensing
• Altitude: 0-6,600 feet (0–2000 Meters) MSL

POWER

• Power Consumption: (100-240VAC 50/60Hz): < 132W
• Cooling: Convection

NETWORK

• Network Connection(s):
  • Number of Ports: 5 Power and media over a single category cable between devices
  • Connector Type: RJ-45
  • Supported Connection Speeds: 100Mbps, 1Gbps
  • Number of PoE+ Powered Ports (IEEE 802.3at Class 4, 30W): 4
  • Supported IEEE Protocols: 802.1, 802.1at, 802.1w, 802.1AS, 802.1BA, 802.1Qav, 802.3ab, 802.3af, 803.3u
  • Total PoE Power Budget: 120W

CONTROLS & INDICATORS

• Control:
  • Indicators:
  • Front Panel: Power, Device Status, Fault, Port Status (per port)
  • Rear Panel (per port): Link, Activity

CERTIFIED SOLUTIONS

• TAA Compliant: TAA Compliant

COMPLIANCE

• Certifications
  • FCC Part 15B (USA)
  • UL and C-UL listed (USA and Canada)
  • CE Marked (Europe)
  • RoHS Directive (Europe)
  • Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces

NOTES

• Specification Notes
  • Maximum Number of AVB Streams: 150
  • Maximum Daisy Chain Device Count: 4
  • Maximum Number of Supported Endpoints: 13
