Biamp Tesira EX-IN 4-Channel Mic/Line Input Expander, PoE+. - Clearance / Open Box
HomeStore

Biamp Tesira EX-IN 4-Channel Mic/Line Input Expander, PoE+. - Clearance / Open Box

Biamp Tesira EX-IN 4-Channel Mic/Line Input Expander, PoE+. - Clearance / Open Box

Tesira EX-IN

The Tesira EX-IN is a half-rack expander box for use with AVB-enabled Tesira server-class devices. The EX-IN is a 4-channel mic or line level audio input expander. The expander communicates with the Tesira AVB network for audio networking, configuration, and control, and is powered by PoE+.

The Tesira EX-IN complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Key Features

  • Four channels of balanced microphone or line level input
  • 0 – 66 dB gain, adjustable in 6 dB increments
  • +48 volts Phantom Power
  • -100 to +12 dB fader range for level
  • Audio and control networking over AVB/TSN
    • Powered by PoE+

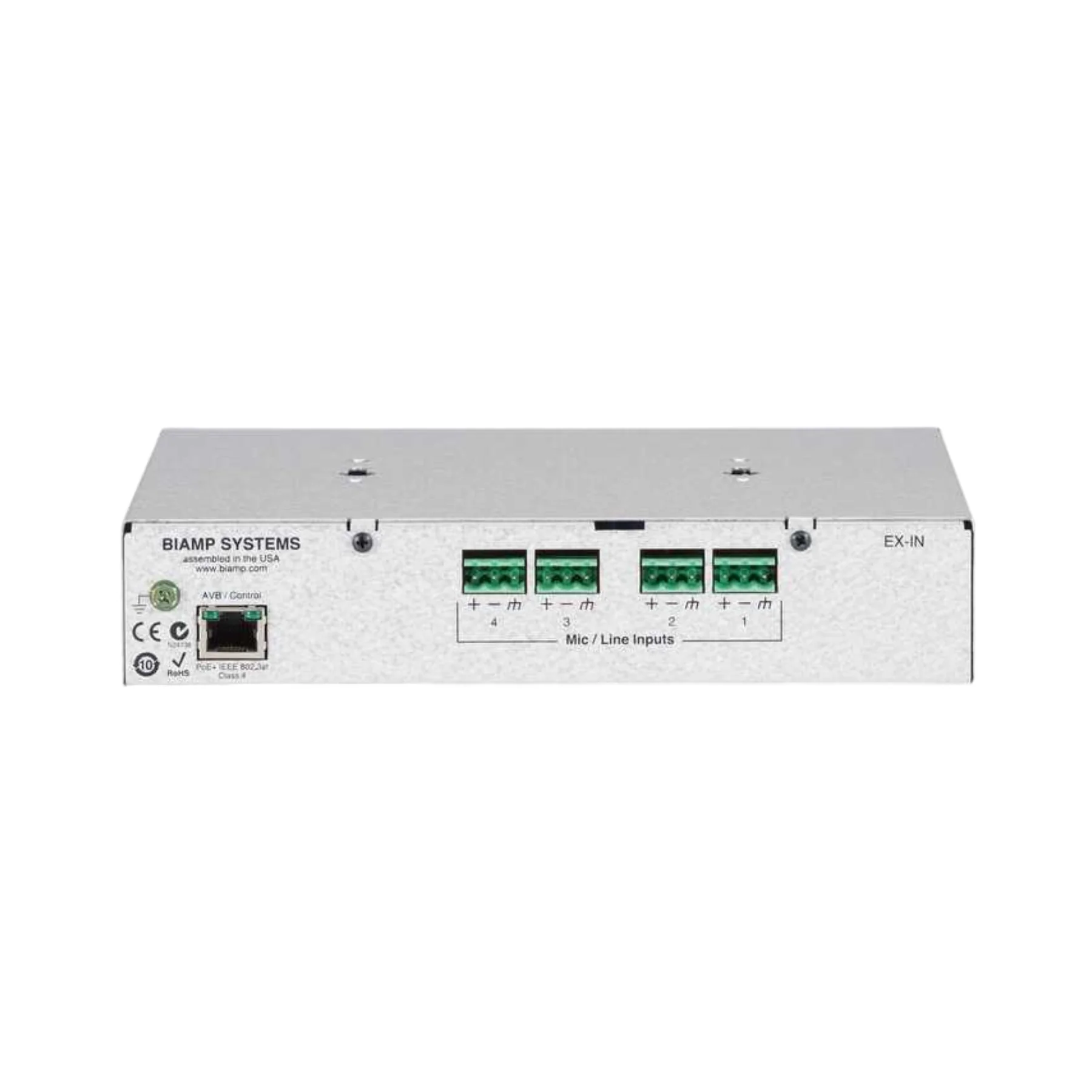

    • Plug-in barrier strip connectors

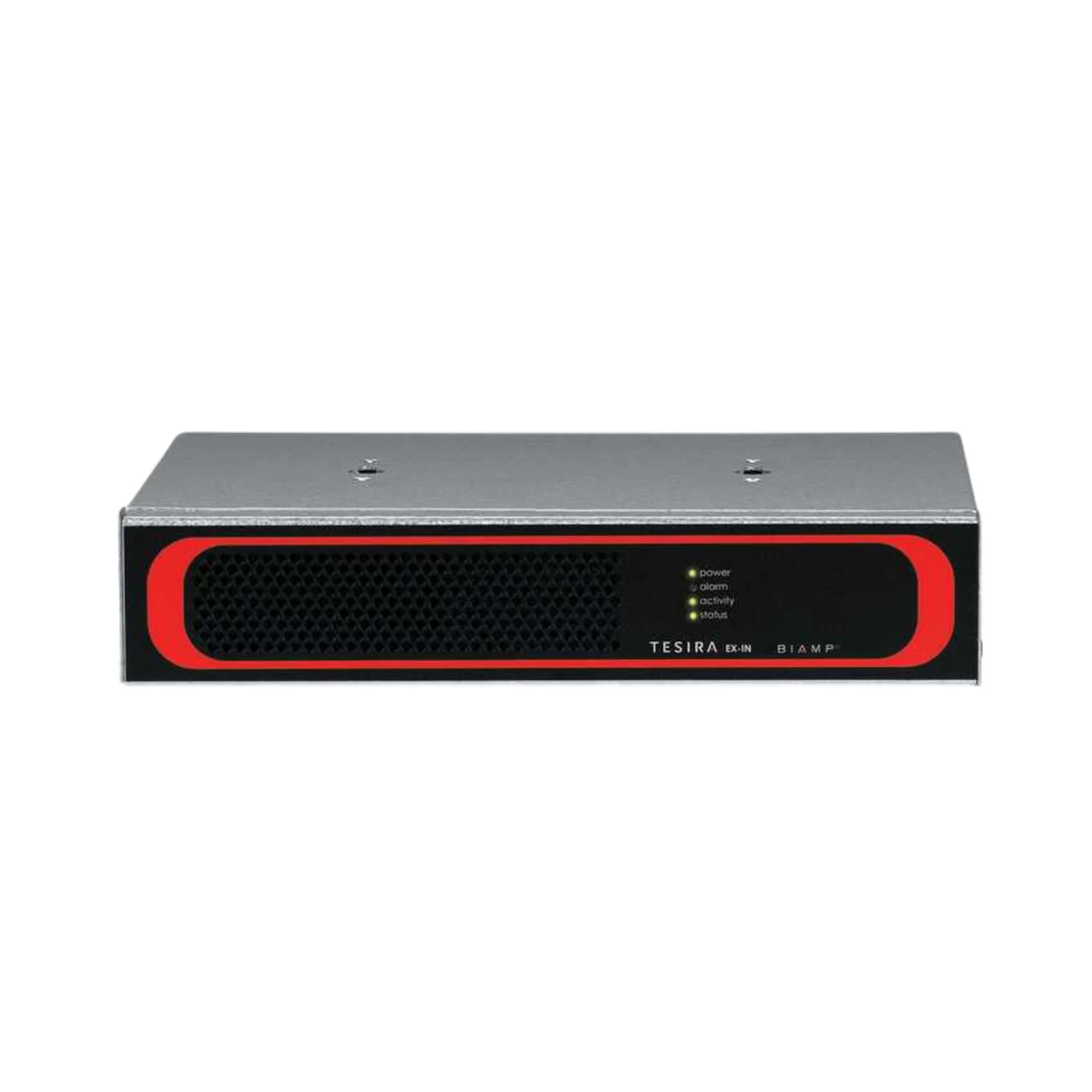

    • Front panel LEDs for device status indications
    • Half-rack chassis
    • RoHS compliant and AES grounded
    • Compliant with the US Trade Agreement Act (TAA)

SPECIFICATIONS

AUDIO

  • Audio: 4 channels of analog audio, the EX-IN is a 4-channel mic/line level input expander
  • Impedance: (balanced): 8kΩ
  • Input Gain Range: (6dB Steps): 0 - 66dB
  • Maximum Input: +24dBu
  • Output Impedance: (balanced): 200Ω
  • Maximum Output: +24dBu
  • THD+N:
    • (20Hz~20kHz):
    • @ 0dB Gain, +4dBu In: < 0.006%
    • @ 54dB Gain, -50dBu In: < 0.040%
  • Frequency Response: (20Hz~20kHz @ +4dBu): +0/-0.25dB
  • EIN: (20Hz~20kHz, 66dB Gain, 150Ω):* < -125dBu
  • Dynamic Range: (20Hz~20kHz, 0dB): > 108dB
  • Crosstalk:
    • (channel to channel @ 1kHz):
    • @ 0dB Gain, +4dBu In: < -85dB
    • @ 54dB Gain, -50dBu In: < -75dB
  • Sampling Rate: 48kHz
  • A/D Converters: A/D - D/A Converters: 24-bit
  • TAA Compliant: TAA Compliant

GENERAL

  • Height: 1.75 inches (44 mm)
  • Width: 8.5 inches (216 mm)
  • Depth: 7.75 inches (197 mm)
  • Weight: 3 lbs (1.4 kg)

ENVIRONMENTAL

  • Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
  • Humidity: 0-95% relative humidity (non-condensing)
  • Altitude: 0-10,000 ft (0-3000m) MSL

POWER

  • Power: PoE+ (IEEE 802.3at Class 4, 30W)
  • Phantom Power: +48 VDC (7mA/input)

COMPLIANCE

  • Certifications:
    • FCC Part 15B (USA)
    • CE marked (Europe)
    • UL and C-UL listed (USA & Canada)
    • RCM (Australia)
    • EAC (Eurasian Customs Union)
    • RoHS Directive (Europe)

NOTES

  • Specification Notes Tail Length: up to 300ms
  • Convergence: up to 100dB/sec
$1,099.00
